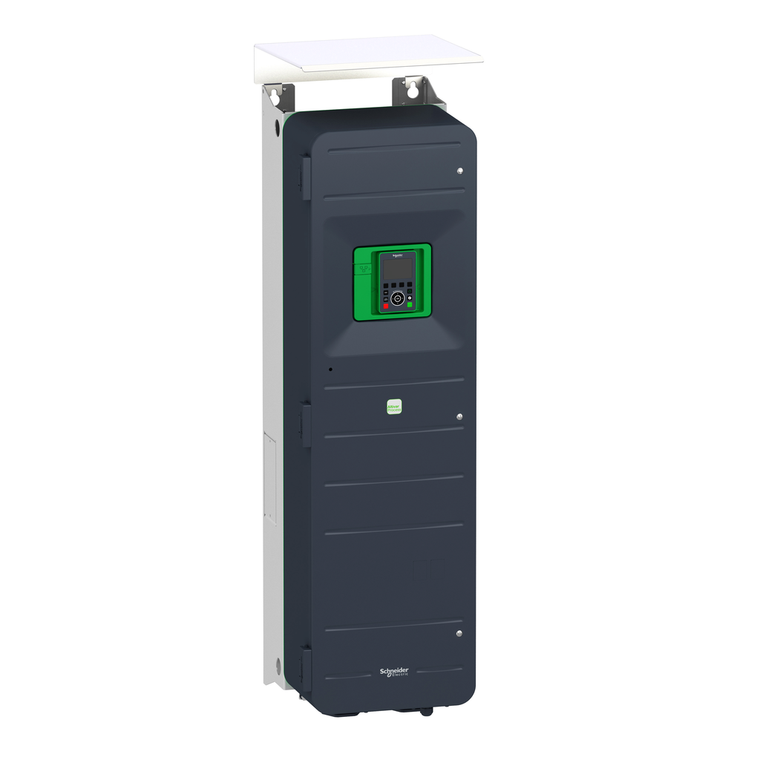

Schneider Electric ATV650D75N4U Atv650 Ip55 Ul Type12 75Kw 100Hp 400V/48

SKU:

ATV650D75N4U

UPC:

3.60648E+12

MPN:

Condition:

New

Prospective Line Isc:

50 kA

Regulation Loop:

adjustable PID regulator

Electrical Connection:

line side screw terminal 95 mm² || motor screw terminal 95...120 mm² || control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16

Enclosure Mounting:

wall mounted

Maximum Horse Power Rating:

75 hp heavy duty || 100 hp normal duty

Standards:

IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 508C

Ip Degree Of Protection:

IP55IEC 60529 || IP55IEC 61800-5-1

Discrete Input Logic:

16 preset speeds

Range Of Product:

Altivar Process ATV600

Permissible Temporary Current Boost:

1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)

Rohs Exemption Information:

Yes

Net Weight:

87 kg

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard

Option Card:

slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A

Continuous Output Current:

106 A 2.5 kHz heavy duty || 145 A 2.5 kHz normal duty

Type Of Polarization:

no impedance

Height:

1250 mm

Relay Output Number:

3

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Motor Power Kw:

55 kW heavy duty) || 75 kW normal duty)

Width:

345 mm

Pollution Degree:

3

Accuracy:

+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input

Supply Frequency:

50...60 Hz - 5...5 %

Sampling Duration:

5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input

Transmission Frame:

RTU

Ambient Air Temperature For Storage:

-40-70 °C

Line Current:

112.7 A 480 V normal duty) || 98.9 A 380 V heavy duty) || 86.9 A 480 V heavy duty) || 131.3 A 380 V normal duty)

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Depth:

375 mm

Operating Altitude:

1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

[Us] Rated Supply Voltage:

380...480 V

Safety Function:

STO (safe torque off) SIL 3

Overvoltage Category:

III

Physical Interface:

Ethernet || 2-wire RS 485

Braking To Standstill:

by DC injection

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Device Short Name:

ATV650

Switching Frequency:

2...8 kHz adjustable || 2.5...8 kHz with derating factor

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Emc Filter:

integrated 150 m IEC 61800-3 category C3

Variant:

standard version

Motor Slip Compensation:

not available in permanent magnet motor law || can be suppressed || adjustable

Local Signalling:

for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs

Product Destination:

asynchronous motors || synchronous motors

Input Compatibility:

DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2 || DI1...DI6 discrete input level 1 PLC IEC 61131-2

Electromagnetic Compatibility:

radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6

Relay Output Type:

configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles

Communication Port Protocol:

Modbus serial || Ethernet

Discrete Input Number:

8

Marking:

CE

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Isolation:

between power and control terminals

Apparent Power:

72.2 kVA 480 V heavy duty) || 93.7 kVA 480 V normal duty)

Operating Position:

vertical +/- 10 degree

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Mounting Mode:

wall mount

Connector Type:

RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP

Discrete Output Number:

0

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Data Format:

8 bits, configurable odd, even or no parity

Product Or Component Type:

variable speed drive

Method Of Access:

slave Modbus TCP

Sustainable Offer Status:

Green Premium product

Noise Level:

69.9 dB 86/188/EEC

Analogue Input Number:

3

Output Voltage:

<= power supply voltage

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Type Of Cooling:

forced convection

China Rohs Regulation:

X

Analogue Output Number:

2

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3

Environmental Disclosure:

ENVPEP1506002EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Protection Type:

safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || m

Supply:

internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external suppl

Quantity Per Set:

1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Speed Drive Output Frequency:

0.1-500 Hz

Mercury Free:

Yes

Number Of Addresses:

1-247 Modbus serial

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Circularity Profile:

ENVEOLI1506002EN

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Product Certifications:

UL || TÜV || CSA || ATEX INERIS || DNV-GL

Maximum Output Frequency:

500 kHz

Phase:

3 phase

Frequency Resolution:

analog input 0.012/50 Hz || display unit 0.1 Hz

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Degree Of Protection:

UL type 12 UL 508C

Maximum Transient Current:

159 A 60 s heavy duty) || 159.5 A 60 s normal duty)

Noise Level:

69.9 dB

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Nominal Switching Frequency:

2.5 kHz

Upgradeability:

Upgraded components available

Product Specific Application:

process and utilities

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Pollution Degree:

2 IEC 61800-5-1

Ambient Air Temperature For Operation:

40-50 °C with derating factor) || -15-40 °C without derating)

Synchronous Motor Control Profile:

synchronous reluctance motor || permanent magnet motor

Linearity Error:

AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
