Schneider Electric

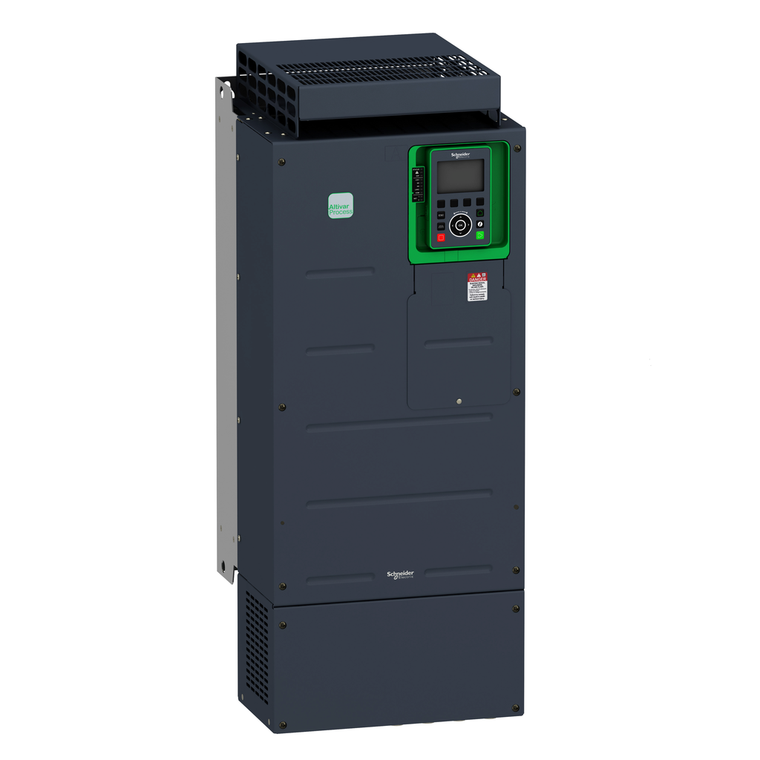

Schneider Electric ATV930D37S6 Atv930Ip20 50Hp 600V Variable Speed Dri

SKU:

ATV930D37S6

UPC:

3.60648E+12

MPN:

Condition:

New

Switching Frequency:

1...4.9 kHz adjustable || 2.5...4.9 kHz with derating factor

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 25...50 mm² AWG 4...AWG 1 || motor screw terminal 25...50 mm² AWG 4...AWG 1 || DC bus screw terminal 25...50 mm² AWG 4...AWG 1

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Apparent Power:

48.9 kVA 600 V normal duty) || 42.2 kVA 600 V heavy duty)

4 Quadrant Operation Possible:

TRUE

Assembly Style:

enclosed

Mercury Free:

Yes

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Relative Symmetric Network Frequency Tolerance:

0.05

Type Of Polarization:

no impedance Modbus serial

Net Weight:

55 kg

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Sustainable Offer Status:

Green Premium product

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Rohs Exemption Information:

Yes

Analogue Input Number:

3

Device Application:

Industrial Application

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Base Load Current At High Overload:

41.5 A

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

China Rohs Regulation:

X

Data Format:

8 bits, configurable odd, even or no parity

Degree Of Protection:

UL type 1

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Range Of Product:

Altivar Process ATV900

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Mounting Mode:

wall mount

Network Frequency:

50-60 Hz

Volume Of Cooling Air:

406 m3/h

Regulation Loop:

adjustable PID regulator

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Product Specific Application:

process for industrial

With Safety Function Safe Torque Off (Sto):

TRUE

Brake Chopper Integrated:

TRUE

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Height:

822 mm

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Maximum Output Voltage:

600.0 V

Nominal Switching Frequency:

2.5 kHz

Maximum Transient Current:

62.4 A 60 s normal duty) || 62.3 A 60 s heavy duty)

Width:

331 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Operating Position:

vertical +/- 10 degree

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Quantity Per Set:

1

Local Signalling:

local diagnostic 3 LED mono/dual colour) || presence of voltage 1 LED red) || embedded communication status 3 LED dual colour) || communication module status 4 LED dual colour)

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Braking To Standstill:

by DC injection

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Polarization:

no impedance

Isolation:

between power and control terminals

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Transmission Frame:

RTU

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Ambient Air Transport Temperature:

-40-70 °C

Noise Level:

56 dB 86/188/EEC

Marking:

CE

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Product Or Component Type:

variable speed drive

Environmental Disclosure:

ENVPEP1706016EN

Phase:

3 phase

Continuous Output Current:

52 A 2.5 kHz normal duty || 41.5 A 2.5 kHz heavy duty

With Safety Function Safely Limited Speed (Sls):

TRUE

Relay Output Number:

3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Upgradeability:

Upgraded components available

Analogue Output Number:

2

Number Of Addresses:

1-247 Modbus serial

Motor Slip Compensation:

can be suppressed || adjustable || automatic whatever the load || not available in permanent magnet motor law

Base Load Current At Low Overload:

52.0 A

With Safety Function Safe Direction (Sdi):

FALSE

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Emc Filter:

integrated || with EMC plate option

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard || optimized torque mode

Discrete Input Number:

10

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Method Of Access:

slave Modbus TCP

Overvoltage Category:

III

Power Dissipation In W:

forced convection 592 W 600 V 2.5 kHz || natural convection 182 W 600 V 2.5 kHz

Prospective Line Isc:

70 kA

With Safety Function Safely Limited Position (Slp):

FALSE

Connector Type:

2 RJ45 || 1 RJ45

Depth:

297 mm

Product Destination:

synchronous motors || asynchronous motors

Circularity Profile:

ENVEOLI1706016EN

Discrete Input Logic:

16 preset speeds

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

[Us] Rated Supply Voltage:

600 V - 15...10 %

Ip Degree Of Protection:

IP20

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Discrete Output Number:

2

With Safety Function Safe Position (Sp):

FALSE

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Ambient Air Temperature For Storage:

-40-70 °C

Variant:

standard version || with braking chopper

With Safety Function Safe Stop 1 (Ss1):

TRUE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Number Of Addresses:

1-247

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Noise Level:

56 dB

Physical Interface:

Ethernet || 2-wire RS 485

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

With Safety Function Safe Programmable Logic:

FALSE

Pollution Degree:

2

Maximum Output Frequency:

599 Hz

Product Certifications:

UL || TÜV || CSA

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Communication Port Protocol:

Modbus serial || Modbus TCP || EtherNet/IP

With Safety Function Safe Operating Stop (Sos):

FALSE

Datasheet:

View
