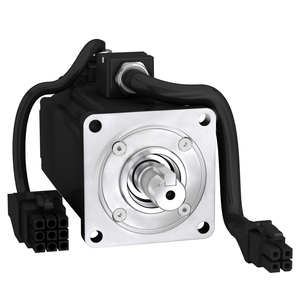

Schneider Electric BCH2LD0432CA5C 60Mm 400W 20Bit E. Oil S. Leads
SKU:
BCH2LD0432CA5C
UPC:
3606480733604
MPN:
Condition:
New
Reach Free Of Svhc:
Yes
Circle Diameter Of The Mounting Holes:
70 mm
Feedback Type:
20 bits single turn absolute encoder
Ambient Air Temperature For Operation:
-20-40 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Permanent Current:
2.5 A
Device Short Name:
BCH2
Nominal Output Power:
400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Rotor Inertia:
0.27 kg.cm²
Type Of Cooling:
natural convection
Torque Constant:
0.58 N.m/A 20 °C
Number Of Motor Stacks:
2
Mercury Free:
Yes
Peak Stall Torque:
3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Circularity Profile:
ENVEOLI1504002EN
Stator Electrical Time Constant:
2.31 ms 20 °C
Shaft Diameter:
14 mm
Product Compatibility:
LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
Nominal Torque:
1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Shaft End:
smooth shaft
Length:
129 mm
Maximum Radial Force Fr:
200 N 3000 rpm
Mounting Support:
asian standard flange
Phase:
three phase || single phase
Shaft Length:
30 mm
Maximum Axial Force Fa:
70 N
Motor Flange Size:
60 mm
Stator Inductance:
12 mH 20 °C
Back Emf Constant:
35 V/krpm 20 °C
Holding Brake:
without
Nominal Speed:
3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Continuous Stall Torque:
1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Net Weight:
1.45 kg
Product Or Component Type:
servo motor
Range Compatibility:
Lexium 28
Environmental Disclosure:
ENVPEP1504002EN
Maximum Mechanical Speed:
5000 rpm
Stator Resistance:
5.2 Ohm 20 °C
Distance Shaft Shoulder-Flange:
5.5 mm
Centring Collar Diameter:
50 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Continuous Stall Current:
2.19 A
Brake Pull-In Power:
11.2 W
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Mounting Holes:
4
Centring Collar Depth:
5.5 mm
[Us] Rated Supply Voltage:
220 V || 110 V
Continuous Power:
400 W
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Electrical Connection:
free lead
Mounting Holes Diameter:
5.5 mm
Maximum Current Irms:
7.76 A LXM28... 0.4 kW, 220 V || 7.76 A LXM28... 0.4 kW, 110 V
