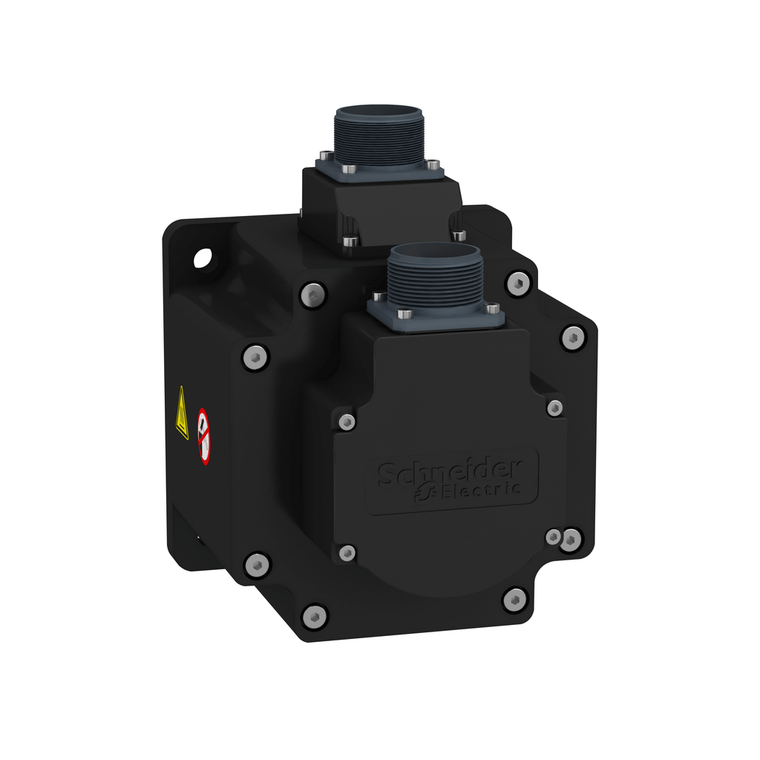

Schneider Electric BCH2MM0523CF6C 130Mm 500W 20Bit E. Oil S. Key Brk Mil
SKU:
BCH2MM0523CF6C
UPC:
3606480734199
MPN:
Condition:
New
Distance Shaft Shoulder-Flange:
8 mm
Maximum Mechanical Speed:
3000 rpm
China Rohs Regulation:
X
Maximum Current Irms:
9.18 A LXM28... 0.5 kW, 220 V || 9.18 A LXM28... 0.5 kW, 110 V
Product Compatibility:
LXM26D servo drive 0.5 kW, 220 V, single phase || LXM26D servo drive 0.5 kW, 220 V, three phase || LXM28... servo drive 0.5 kW, 220 V, single phase || LXM28... servo drive 0.5 kW, 220 V, three phase || LXM28... servo drive 0.5 kW, 110 V, single phase
Back Emf Constant:
50 V/krpm 20 °C
Sustainable Offer Status:
Green Premium product
Holding Torque:
9.6 N.m built-in
Reach Free Of Svhc:
Yes
Nominal Torque:
2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Shaft Length:
45 mm
Shaft End:
keyed
Torque Constant:
0.83 N.m/A 20 °C
Range Compatibility:
Lexium 28
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Radial Force Fr:
670 N 2000 rpm
Electrical Connection:
connector MIL
Maximum Permanent Current:
3.24 A
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Short Name:
BCH2
Nominal Speed:
2000 rpm LXM26D 4.5 A, 220 V, single phase || 2000 rpm LXM26D 4.5 A, 220 V, three phase || 2000 rpm LXM28... 4.5 A, 220 V, single phase || 2000 rpm LXM28... 4.5 A, 220 V, three phase || 2000 rpm LXM28... 9 A, 110 V, single phase
Maximum Axial Force Fa:
200 N
Circle Diameter Of The Mounting Holes:
145 mm
Rohs Exemption Information:
Yes
Mounting Support:
asian standard flange
Continuous Power:
500 W
Key Width:
8 mm
Nominal Output Power:
500 W LXM26D 4.5 A, 220 V, single phase || 500 W LXM26D 4.5 A, 220 V, three phase || 500 W LXM28... 4.5 A, 220 V, single phase || 500 W LXM28... 4.5 A, 220 V, three phase || 500 W LXM28... 9 A, 110 V, single phase
Circularity Profile:
ENVEOLI1504002EN
Pvc Free:
Yes
Length:
183 mm
Phase:
three phase || single phase
Continuous Stall Torque:
2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Continuous Stall Current:
2.89 A
Holding Brake:
with
Mounting Holes Diameter:
9.2 mm
Ambient Air Temperature For Operation:
0-40 °C
Number Of Motor Stacks:
1
[Us] Rated Supply Voltage:
220 V || 110 V
Environmental Disclosure:
ENVPEP1504002EN
Shaft Diameter:
22 mm
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Product Or Component Type:
servo motor
Type Of Cooling:
natural convection
Stator Resistance:
0.62 Ohm 20 °C
Stator Electrical Time Constant:
11.94 ms 20 °C
Number Of Mounting Holes:
4
Feedback Type:
20 bits single turn absolute encoder
Peak Stall Torque:
7.16 N.m LXM26D 4.5 A, 220 V, single phase || 7.16 N.m LXM26D 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
Centring Collar Diameter:
110 mm
Centring Collar Depth:
8 mm
Net Weight:
8.2 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Brake Pull-In Power:
19.7 W
Motor Flange Size:
130 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
