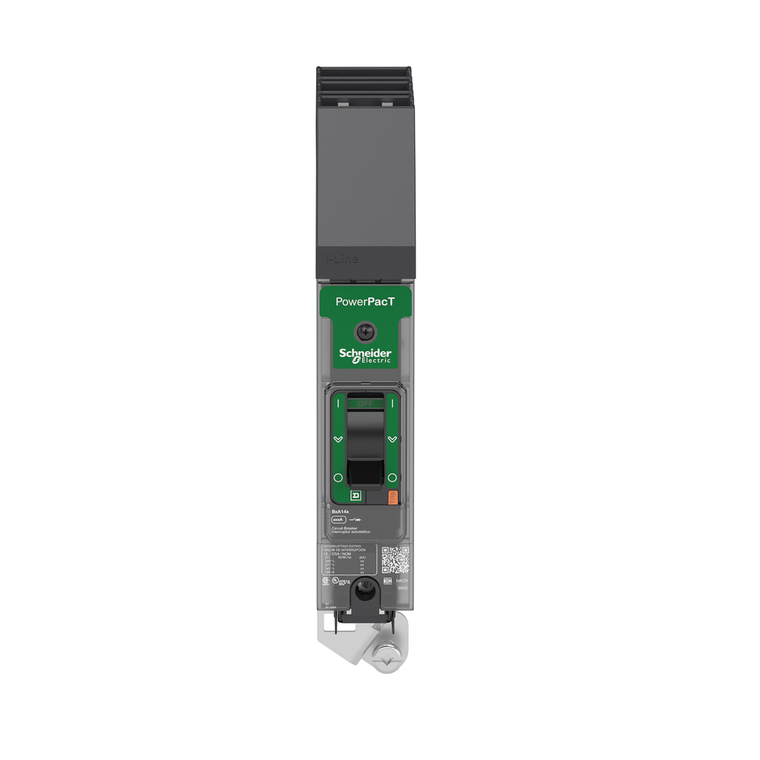

Schneider Electric BDA140801 Molded Case Circuit Breaker 277V 80A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDA140801 Molded Case Circuit Breaker 277V 80A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDA140801

UPC:

3606481151674

MPN:

Condition:

New

Range:

PowerPact

Connection Pitch:

27 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Eu Rohs Directive:

Compliant

Local Signalling:

presence of auxiliary contacts flag green)

Net Weight:

0.6375 kg

Product Or Component Type:

circuit breaker

Circuit Breaker Application:

HACR rated

9 Mm Pitches:

3

Standards:

EN/IEC 60947-5-1 || UL 489 || CSA C22.2 No 5 || EN/IEC 60947-2 || GB 14048.2 || NMX J-266 || NEMA AB1

Environmental Disclosure:

ENVPEP1610005EN

Ambient Air Temperature For Operation:

-25-70 °C

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Depth:

89 mm

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Color:

Gray RAL 7016)

Pvc Free:

Yes

Trip Unit Technology:

thermal-magnetic

Awg Gauge:

AWG 14...AWG 2/0 aluminium/copper

Quantity Per Set:

set of 1

Sustainable Offer Status:

Green Premium product

Mounting Mode:

I-Line

Continuous Current Rating:

0.8

Tightening Torque:

3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)

Breaking Capacity Code:

D

Quality Labels:

CE

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489

Line Rated Current:

80-80 A

Ik Degree Of Protection:

IK07 IEC 62262

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Electrical Connection:

I-Line connection, line || lugs, load

Pollution Degree:

3 IEC 60947-1

Ip Degree Of Protection:

front cover IP40 IEC 60529

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mercury Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Mounting Height:

38.1 mm

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2

Width:

27 mm

Device Short Name:

BD 080

Phase Connection:

A

Product Name:

PowerPact B

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Control Type:

toggle

Halogen Content Performance:

Halogen free product

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Poles Description:

1P

Network Frequency:

50/60 Hz

Wire Stripping Length:

20 mm

Utilisation Category:

category A

Ambient Air Temperature For Storage:

-50-85 °C

Height:

137 mm

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz UL 489

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Device Application:

distribution

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Brochure:

View

Catalog:

View

Datasheet:

View
