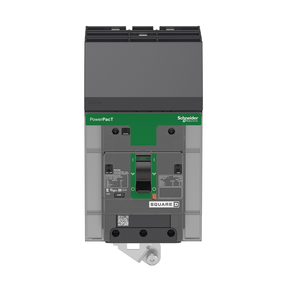

Schneider Electric BDA24015Y4 Molded Case Circuit Brkr 480Y/277V 15A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDA24015Y4 Molded Case Circuit Brkr 480Y/277V 15A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDA24015Y4

UPC:

3606481151759

MPN:

Condition:

New

Width:

54 mm

Net Weight:

0.952 kg

Local Signalling:

presence of auxiliary contacts flag green)

9 Mm Pitches:

6

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 10 kA 600Y/347 V AC 50/60 Hz UL 489

Product Or Component Type:

circuit breaker

Ik Degree Of Protection:

IK07 IEC 62262

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Quality Labels:

CE

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Wire Stripping Length:

20 mm

Suitability For Isolation:

yes IEC 60947-2

Utilisation Category:

category A

Circuit Breaker Application:

HACR rated

Sustainable Offer Status:

Green Premium product

Awg Gauge:

AWG 14...AWG 2/0 aluminium/copper

Phase Connection:

BC

Depth:

89 mm

Mounting Height:

76.2 mm

Ip Degree Of Protection:

front cover IP40 IEC 60529

Trip Unit Technology:

thermal-magnetic

Rohs Exemption Information:

Yes

Mounting Mode:

I-Line

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Product Name:

PowerPact B

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Standards:

GB 14048.2 || EN/IEC 60947-5-1 || NEMA AB1 || EN/IEC 60947-2 || CSA C22.2 No 5 || UL 489 || NMX J-266

Range:

PowerPact

Height:

137 mm

Control Type:

toggle

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Device Application:

distribution

Ambient Air Temperature For Operation:

-25-70 °C

Device Short Name:

BD 015

Pollution Degree:

3 IEC 60947-1

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Network Frequency:

50/60 Hz

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Environmental Disclosure:

ENVPEP1610005EN

Eu Rohs Directive:

Compliant

Quantity Per Set:

set of 1

Color:

Gray RAL 7016)

Pvc Free:

Yes

Line Rated Current:

15-15 A

Poles Description:

2P

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Electrical Connection:

I-Line connection, line || lugs, load

Tightening Torque:

3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)

Continuous Current Rating:

0.8

Connection Pitch:

27 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Breaking Capacity Code:

D

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-50-85 °C

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Halogen Content Performance:

Halogen free product
