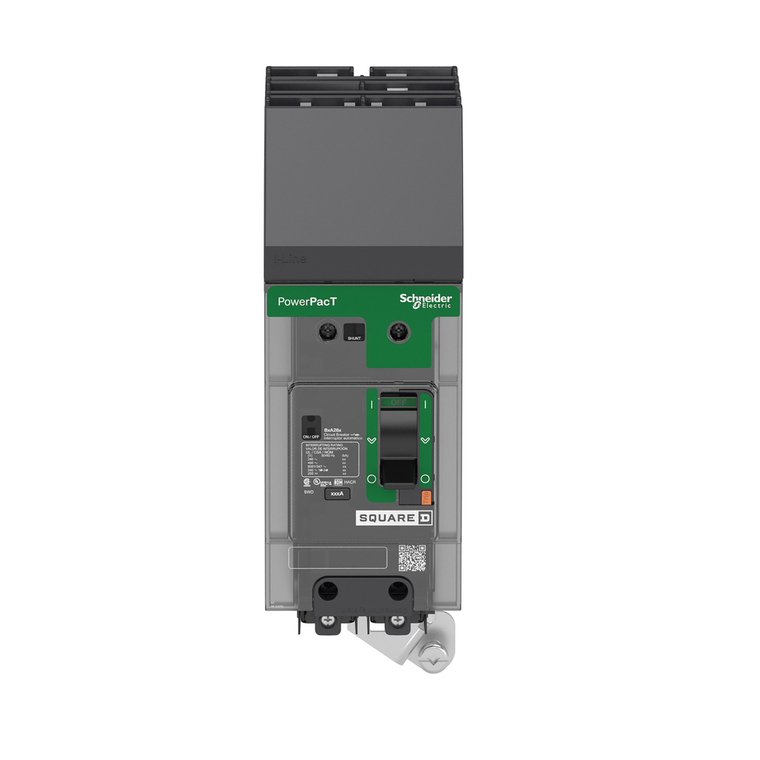

Schneider Electric BDA24080Y1 Molded Case Circuit Brkr 480Y/277V 80A
Schneider Electric
$837.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 80A, 2 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Local Signalling:
- presence of auxiliary contacts flag green)
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 10 kA 600Y/347 V AC 50/60 Hz UL 489
- Width:
- 54 mm
- Network Frequency:
- 50/60 Hz
- Ambient Air Temperature For Operation:
- -25-70 °C
- Device Application:
- distribution
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Continuous Current Rating:
- 0.8
- Ik Degree Of Protection:
- IK07 IEC 62262
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Circularity Profile:
- N/A
- Standards:
- EN/IEC 60947-5-1 || NMX J-266 || GB 14048.2 || EN/IEC 60947-2 || UL 489 || NEMA AB1 || CSA C22.2 No 5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Name:
- PowerPact B
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- I-Line connection, line || lugs, load
- Mercury Free:
- Yes
- Quantity Per Set:
- set of 1
- Mounting Height:
- 76.2 mm
- Product Or Component Type:
- circuit breaker
- Pvc Free:
- Yes
- Net Weight:
- 0.952 kg
- Trip Unit Technology:
- thermal-magnetic
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Environmental Disclosure:
- ENVPEP1610005EN
- Control Type:
- toggle
- Color:
- Gray RAL 7016)
- Phase Connection:
- AB
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Mode:
- I-Line
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Poles Description:
- 2P
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Halogen Content Performance:
- Halogen free product
- Quality Labels:
- CE
- Line Rated Current:
- 80-80 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Utilisation Category:
- category A
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Range:
- PowerPact
- Connection Pitch:
- 27 mm
- Circuit Breaker Application:
- HACR rated
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Height:
- 137 mm
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Device Short Name:
- BD 080
- 9 Mm Pitches:
- 6
- Pollution Degree:
- 3 IEC 60947-1
- Ambient Air Temperature For Storage:
- -50-85 °C
- Wire Stripping Length:
- 20 mm
- Depth:
- 89 mm
- Breaking Capacity Code:
- D
- Sustainable Offer Status:
- Green Premium product
