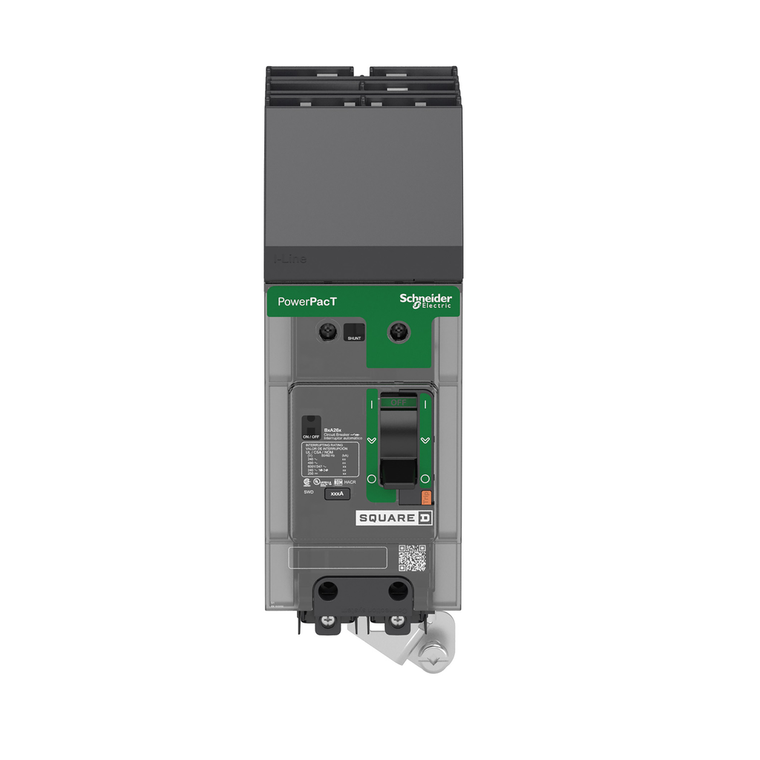

Schneider Electric BDA260804 Molded Case Circuit Brkr 600Y/347V 80A
Schneider Electric
$1,468.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 80A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Pvc Free:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Net Weight:
- 0.952 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Continuous Current Rating:
- 0.8
- Electrical Connection:
- I-Line connection, line || lugs, load
- Control Type:
- toggle
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Height:
- 137 mm
- Mounting Mode:
- I-Line
- Rohs Exemption Information:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Connection Pitch:
- 27 mm
- Line Rated Current:
- 80-80 A
- Width:
- 54 mm
- 9 Mm Pitches:
- 6
- Mercury Free:
- Yes
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Device Application:
- distribution
- Trip Unit Technology:
- thermal-magnetic
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Ambient Air Temperature For Storage:
- -50-85 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Product Or Component Type:
- circuit breaker
- Wire Stripping Length:
- 20 mm
- Poles Description:
- 2P
- Utilisation Category:
- category A
- Device Short Name:
- BD 080
- Ambient Air Temperature For Operation:
- -25-70 °C
- Color:
- Gray RAL 7016)
- Environmental Disclosure:
- ENVPEP1610005EN
- Mounting Height:
- 76.2 mm
- Sustainable Offer Status:
- Green Premium product
- Ik Degree Of Protection:
- IK07 IEC 62262
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Halogen Content Performance:
- Halogen free product
- Standards:
- GB 14048.2 || NEMA AB1 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || NMX J-266 || EN/IEC 60947-2 || UL 489
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Product Name:
- PowerPact B
- Depth:
- 89 mm
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Quality Labels:
- CE
- Phase Connection:
- BC
- Pollution Degree:
- 3 IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Range:
- PowerPact
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Eu Rohs Directive:
- Compliant
- Breaking Capacity Code:
- D
- Quantity Per Set:
- set of 1
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Local Signalling:
- presence of auxiliary contacts flag green)
