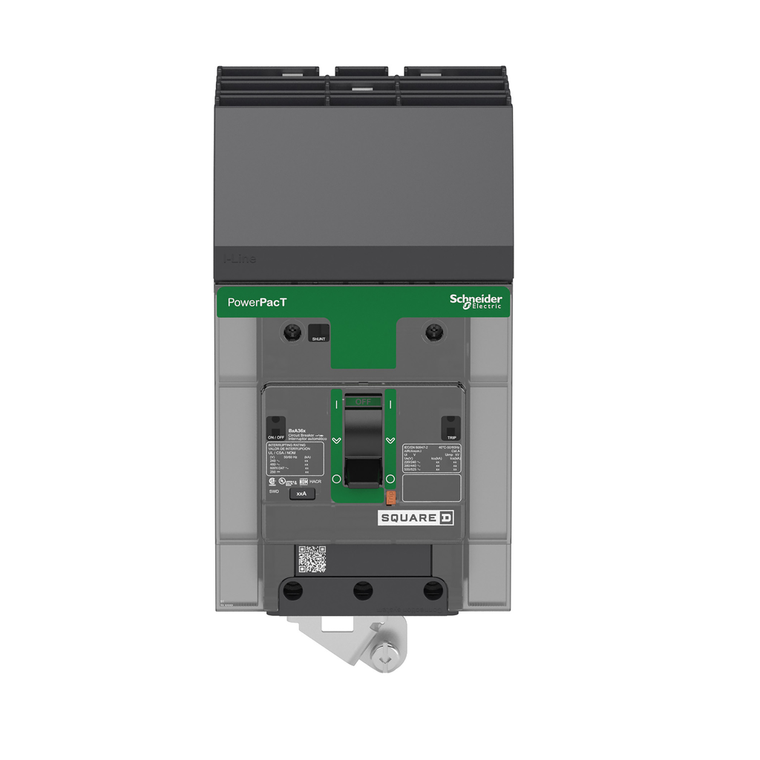

Schneider Electric BDA36110 Molded Case Circuit Brkr 600Y/347V 110A

Schneider Electric BDA36110 Molded Case Circuit Brkr 600Y/347V 110A

Schneider Electric
SKU:
BDA36110
|
UPC:
785901051893
Availability:
Factory stock
$955.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 110A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-25-70 °C
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Wire Stripping Length:
20 mm
Network Frequency:
50/60 Hz
Device Short Name:
BD 110
Circuit Breaker Application:
HACR rated
Connection Pitch:
27 mm
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Standards:
EN/IEC 60947-5-1 || CSA C22.2 No 5 || UL 489 || NEMA AB1 || EN/IEC 60947-2 || NMX J-266 || GB 14048.2
Electrical Connection:
I-Line connection, line || lugs, load
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Product Name:
PowerPact B
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height:
137 mm
Line Rated Current:
110-110 A
Utilisation Category:
category A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Environmental Disclosure:
ENVPEP1610005EN
9 Mm Pitches:
9
Awg Gauge:
AWG 14...AWG 2/0 aluminium/copper
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
Poles Description:
3P
Color:
Gray RAL 7016)
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Height:
114 mm
Breaking Capacity Code:
D
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Depth:
89 mm
Pvc Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Circularity Profile:
N/A
Phase Connection:
ABC
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Ik Degree Of Protection:
IK07 IEC 62262
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Device Application:
distribution
Range:
PowerPact
Halogen Content Performance:
Halogen free product
Trip Unit Technology:
thermal-magnetic
Quantity Per Set:
set of 1
Eu Rohs Directive:
Compliant with Exemptions
Mounting Mode:
I-Line
Sustainable Offer Status:
Green Premium product
Continuous Current Rating:
0.8
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Tightening Torque:
3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
Product Or Component Type:
circuit breaker
Control Type:
toggle
Pollution Degree:
3 IEC 60947-1
Width:
81 mm
Quality Labels:
CE
Mercury Free:
Yes
Local Signalling:
presence of auxiliary contacts flag green)
Net Weight:
1.315 kg
