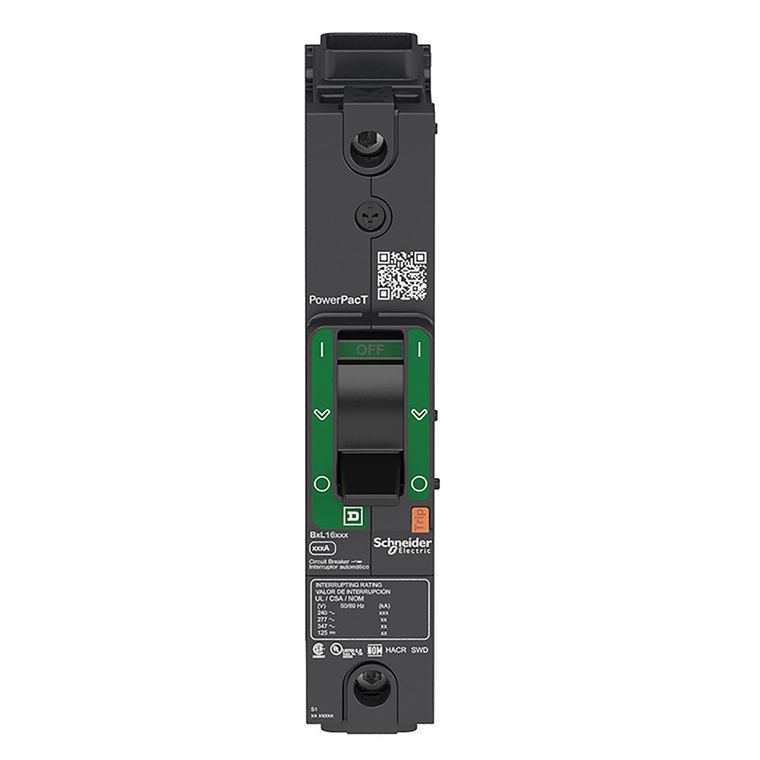

Schneider Electric BDF16080 Molded Case Circuit Breaker 347V 80A
Schneider Electric
$627.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 80A, 1 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. Optional operating mechanisms.
- Breaking Capacity Code:
- D
- Network Frequency:
- 50/60 Hz
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Electrical Connection:
- terminal nut, ON and OFF end
- Net Weight:
- 0.46 kg
- Ik Degree Of Protection:
- IK07 IEC 62262
- Quantity Per Set:
- set of 1
- Quality Labels:
- CE
- Rohs Exemption Information:
- Yes
- Continuous Current Rating:
- 0.8
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- 9 Mm Pitches:
- 3
- Trip Unit Name:
- TM-D
- Trip Unit Technology:
- thermal-magneticTM-D,
- Awg Gauge:
- AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Circuit Breaker Application:
- HACR rated
- Control Type:
- toggle
- Product Or Component Type:
- circuit breaker
- Color:
- Gray RAL 7016)
- Height:
- 137 mm
- Device Application:
- distribution
- Environmental Disclosure:
- ENVPEP1610005EN
- Pollution Degree:
- 3 IEC 60947-1
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Ambient Air Temperature For Operation:
- -25-70 °C
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Short Name:
- BD 080
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Connection Pitch:
- 27 mm
- Utilisation Category:
- category A
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Product Name:
- PowerPact B
- Depth:
- 80 mm
- Wire Stripping Length:
- 20 mm
- Halogen Content Performance:
- Halogen free product
- Circularity Profile:
- N/A
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- Suitability For Isolation:
- yes IEC 60947-2
- Line Rated Current:
- 80-80 A
- Mercury Free:
- Yes
- Range:
- PowerPact
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pvc Free:
- Yes
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- Protected Poles Description:
- 1t
- Width:
- 27 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Standards:
- EN/IEC 60947-5-1 || NEMA AB1 || CSA C22.2 No 5 || NMX J-266 || EN/IEC 60947-2 || UL 489 || GB 14048.2
- Poles Description:
- 1P
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Eu Rohs Directive:
- Compliant with Exemptions
