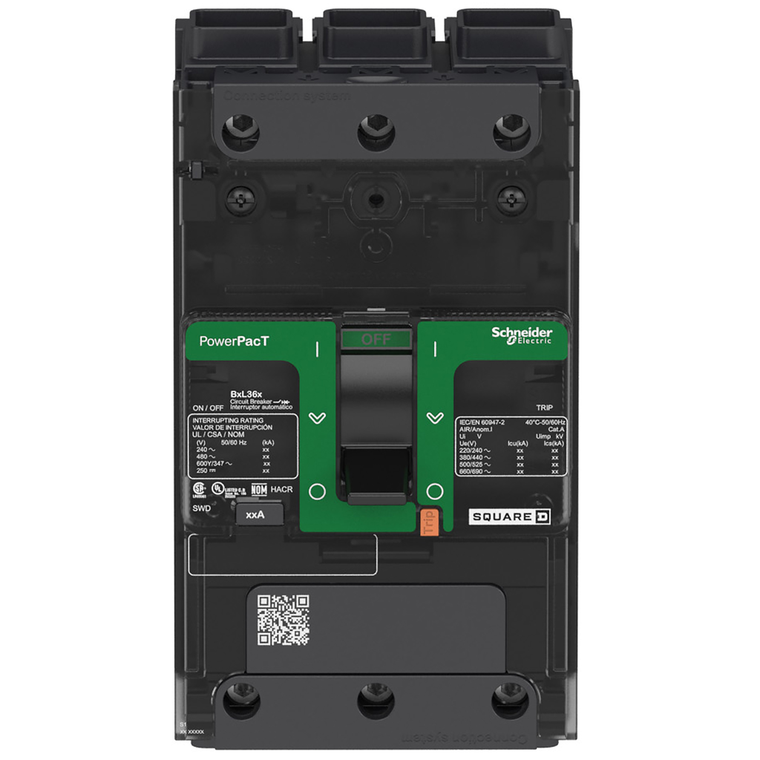

Schneider Electric BDF36070 Molded Case Circuit Brkr 600Y/347V 70A

Schneider Electric BDF36070 Molded Case Circuit Brkr 600Y/347V 70A

Schneider Electric
SKU:
BDF36070
|
UPC:
3606481149299
Availability:
Factory stock
$827.31
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. Optional terminations.
Additional Information
Width:
81 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
Control Type:
toggle
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Ik Degree Of Protection:
IK07 IEC 62262
Halogen Content Performance:
Halogen free product
Net Weight:
0.924 kg
Trip Unit Name:
TM-D
Network Frequency:
50/60 Hz
Utilisation Category:
category A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
clip-on 35 mm symmetrical DIN rail) || by screws plate)
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA
Sustainable Offer Status:
Green Premium product
Circuit Breaker Application:
HACR rated
Device Application:
distribution
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Connection Pitch:
27 mm
Ambient Air Temperature For Storage:
-50-85 °C
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Continuous Current Rating:
0.8
Quality Labels:
CE
Local Signalling:
presence of auxiliary contacts flag green)
Ip Degree Of Protection:
front cover IP40 IEC 60529
Device Short Name:
BD 070
Eu Rohs Directive:
Compliant with Exemptions
Product Name:
PowerPact B
Protected Poles Description:
3t
Trip Unit Technology:
thermal-magneticTM-D,
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
9 Mm Pitches:
9
Circularity Profile:
N/A
Pvc Free:
Yes
Awg Gauge:
AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
Wire Stripping Length:
20 mm
Poles Description:
3P
Line Rated Current:
70-70 A
Depth:
80 mm
Environmental Disclosure:
ENVPEP1610005EN
Operating Altitude:
6561.68 ft (2000 m) without derating || 5000 m with derating
Range:
PowerPact
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Electrical Connection:
terminal nut, ON and OFF end
Rohs Exemption Information:
Yes
Standards:
CSA C22.2 No 5 || NEMA AB1 || NMX J-266 || EN/IEC 60947-5-1 || EN/IEC 60947-2 || GB 14048.2 || UL 489
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Breaking Capacity Code:
D
Product Or Component Type:
circuit breaker
Quantity Per Set:
set of 1
Color:
Gray RAL 7016)
Mercury Free:
Yes
Mechanical Durability:
15000 cycles IEC 947-1 Annex K ed 5.2
Height:
137 mm
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Brochure:
View
Catalog:
View
