Schneider Electric BDF36080 Molded Case Circuit Brkr 600Y/347V 80A

(No reviews yet) Write a Review

Write a Review

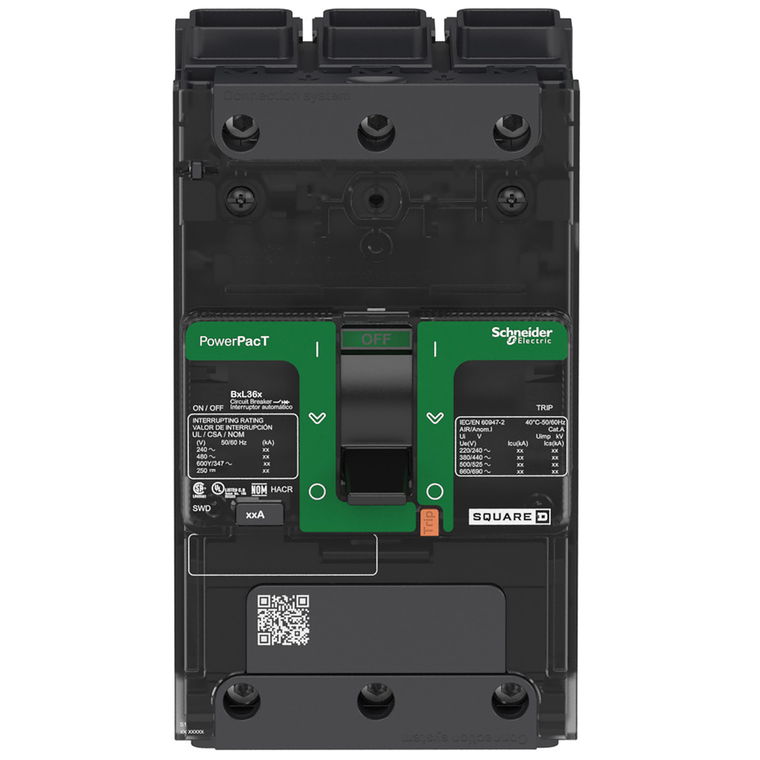

Schneider Electric BDF36080 Molded Case Circuit Brkr 600Y/347V 80A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDF36080

UPC:

3606481149305

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-25-70 °C

Pollution Degree:

3 IEC 60947-1

Range:

PowerPact

Product Name:

PowerPact B

Sustainable Offer Status:

Green Premium product

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mechanical Durability:

15000 cycles IEC 947-1 Annex K ed 5.2

Rohs Exemption Information:

Yes

Electrical Connection:

terminal nut, ON and OFF end

Eu Rohs Directive:

Compliant with Exemptions

Height:

137 mm

Standards:

GB 14048.2 || NMX J-266 || EN/IEC 60947-2 || NEMA AB1 || CSA C22.2 No 5 || UL 489 || EN/IEC 60947-5-1

Trip Unit Technology:

thermal-magneticTM-D,

9 Mm Pitches:

9

Depth:

80 mm

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Local Signalling:

presence of auxiliary contacts flag green)

Quantity Per Set:

set of 1

Net Weight:

0.924 kg

Trip Unit Name:

TM-D

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Network Frequency:

50/60 Hz

Ip Degree Of Protection:

front cover IP40 IEC 60529

Product Or Component Type:

circuit breaker

Color:

Gray RAL 7016)

Quality Labels:

CE

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-50-85 °C

Control Type:

toggle

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pvc Free:

Yes

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Suitability For Isolation:

yes IEC 60947-2

Breaking Capacity Code:

D

Protected Poles Description:

3t

Ik Degree Of Protection:

IK07 IEC 62262

Continuous Current Rating:

0.8

Circularity Profile:

N/A

Mercury Free:

Yes

Circuit Breaker Application:

HACR rated

Utilisation Category:

category A

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

Connection Pitch:

27 mm

Halogen Content Performance:

Halogen free product

Width:

81 mm

Wire Stripping Length:

20 mm

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Line Rated Current:

80-80 A

Device Short Name:

BD 080

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Poles Description:

3P

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Awg Gauge:

AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Device Application:

distribution

Environmental Disclosure:

ENVPEP1610005EN

Brochure:

View

Catalog:

View

Datasheet:

View
