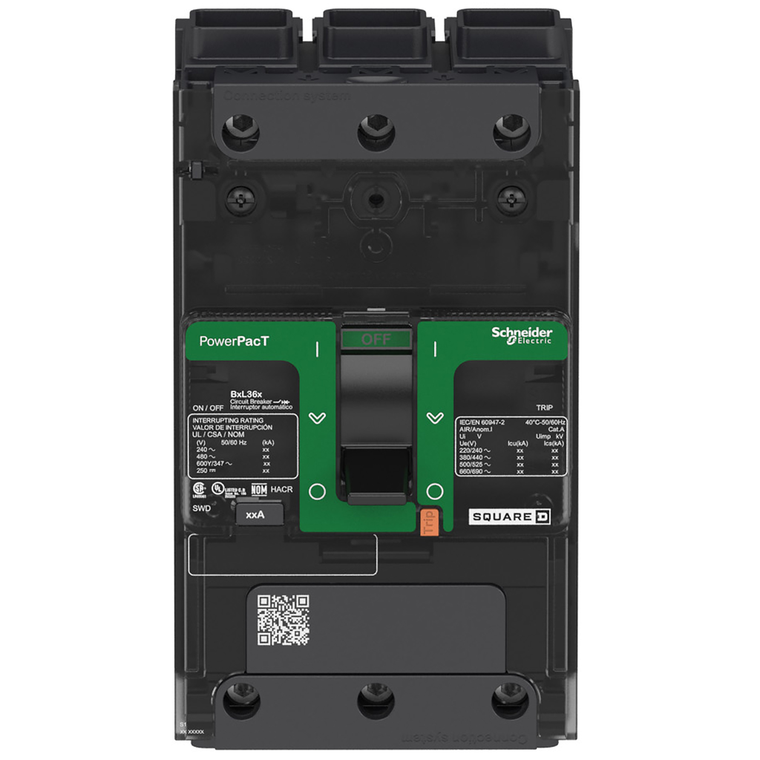

Schneider Electric BDF36100 Molded Case Circuit Brkr 600Y/347V 100A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDF36100 Molded Case Circuit Brkr 600Y/347V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDF36100

UPC:

3606481149329

MPN:

Condition:

New

Protected Poles Description:

3t

Width:

81 mm

Wire Stripping Length:

20 mm

Suitability For Isolation:

yes IEC 60947-2

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Ambient Air Temperature For Operation:

-25-70 °C

Environmental Disclosure:

ENVPEP1610005EN

Trip Unit Name:

TM-D

Awg Gauge:

AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Control Type:

toggle

Depth:

80 mm

Circularity Profile:

N/A

Connection Pitch:

27 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

9 Mm Pitches:

9

Mechanical Durability:

15000 cycles IEC 947-1 Annex K ed 5.2

Quality Labels:

CE

Rohs Exemption Information:

Yes

Line Rated Current:

100-100 A

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Ambient Air Temperature For Storage:

-50-85 °C

Electrical Connection:

terminal nut, ON and OFF end

Trip Unit Technology:

thermal-magneticTM-D,

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Product Name:

PowerPact B

Utilisation Category:

category A

Eu Rohs Directive:

Compliant with Exemptions

Breaking Capacity Code:

D

Continuous Current Rating:

0.8

Ik Degree Of Protection:

IK07 IEC 62262

Height:

137 mm

Pollution Degree:

3 IEC 60947-1

Halogen Content Performance:

Halogen free product

Device Short Name:

BD 100

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ip Degree Of Protection:

front cover IP40 IEC 60529

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2

Mercury Free:

Yes

Range:

PowerPact

Quantity Per Set:

set of 1

Local Signalling:

presence of auxiliary contacts flag green)

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

Product Or Component Type:

circuit breaker

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Standards:

GB 14048.2 || EN/IEC 60947-2 || CSA C22.2 No 5 || UL 489 || NMX J-266 || EN/IEC 60947-5-1 || NEMA AB1

Pvc Free:

Yes

[Ue] Rated Operational Voltage:

525 V AC 50/60 Hz UL 489

Net Weight:

0.924 kg

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 18 kA 240 V AC 50/60 Hz UL 489 || Icu 25 kA 480/277 V AC 50/60 Hz UL 489 || Icu 14 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 14 kA 250 V DC UL 489 || 25 kA || Icu 18 kA

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)

Circuit Breaker Application:

HACR rated

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Network Frequency:

50/60 Hz

Device Application:

distribution

Color:

Gray RAL 7016)

Poles Description:

3P
