Schneider Electric BDL16015 Molded Case Circuit Breaker 347V 15A
Schneider Electric
$343.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

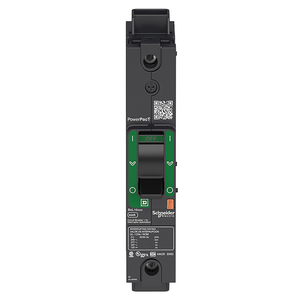

Schneider Electric BDL16015 Molded Case Circuit Breaker 347V 15A
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 15A, 1 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. EverLink lugs are also available with unique integrated control wire terminals.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Pvc Free:
- Yes
- Network Frequency:
- 50/60 Hz
- Product Or Component Type:
- circuit breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Environmental Disclosure:
- ENVPEP1610005EN
- Poles Description:
- 1P
- Protected Poles Description:
- 1t
- Height:
- 137 mm
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- BD 015
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Connection Pitch:
- 27 mm
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Color:
- Gray RAL 7016)
- Line Rated Current:
- 15-15 A
- Utilisation Category:
- category A
- 9 Mm Pitches:
- 3
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Trip Unit Name:
- TM-D
- Circularity Profile:
- N/A
- Quantity Per Set:
- set of 1
- Trip Unit Technology:
- thermal-magneticTM-D,
- Rohs Exemption Information:
- Yes
- Control Type:
- toggle
- Mercury Free:
- Yes
- Product Name:
- PowerPact B
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Eu Rohs Directive:
- Compliant with Exemptions
- Ik Degree Of Protection:
- IK07 IEC 62262
- Wire Stripping Length:
- 20 mm
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity Code:
- D
- Width:
- 27 mm
- Range:
- PowerPact
- Ambient Air Temperature For Operation:
- -25-70 °C
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Continuous Current Rating:
- 0.8
- Halogen Content Performance:
- Halogen free product
- Suitability For Isolation:
- yes IEC 60947-2
- Standards:
- NMX J-266 || EN/IEC 60947-5-1 || CSA C22.2 No 5 || GB 14048.2 || EN/IEC 60947-2 || NEMA AB1 || UL 489
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- Quality Labels:
- CE
- Depth:
- 80 mm
- Device Application:
- distribution
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Net Weight:
- 0.51 kg
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
