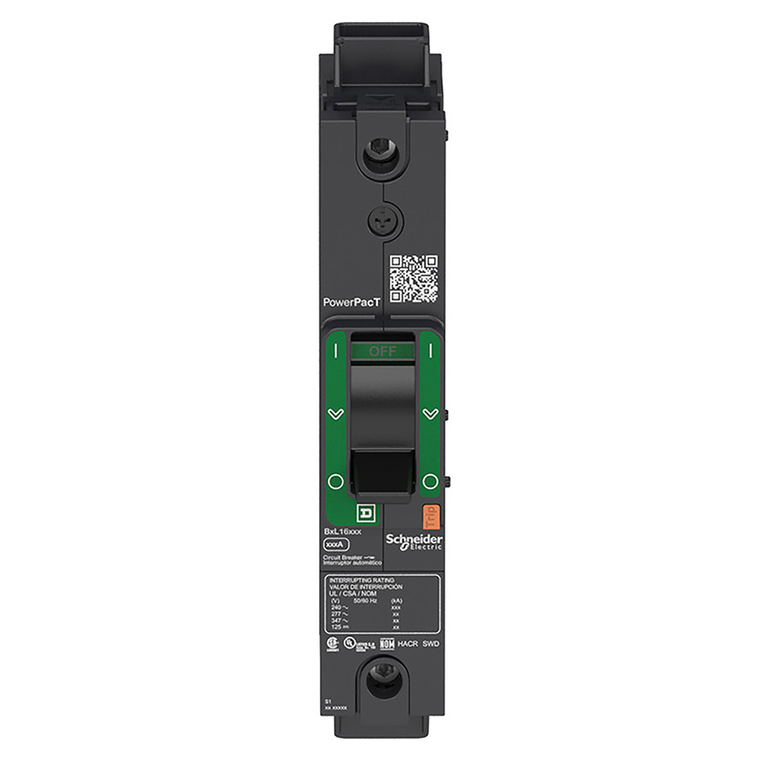

Schneider Electric BDL16030 Molded Case Circuit Breaker 347V 30A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BDL16030 Molded Case Circuit Breaker 347V 30A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BDL16030

UPC:

3606481148483

MPN:

Condition:

New

Net Weight:

0.51 kg

Trip Unit Name:

TM-D

Standards:

CSA C22.2 No 5 || EN/IEC 60947-2 || GB 14048.2 || UL 489 || EN/IEC 60947-5-1 || NEMA AB1 || NMX J-266

Depth:

80 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Awg Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Ik Degree Of Protection:

IK07 IEC 62262

Line Rated Current:

30-30 A

Utilisation Category:

category A

Quantity Per Set:

set of 1

Ambient Air Temperature For Storage:

-50-85 °C

Control Type:

toggle

Rohs Exemption Information:

Yes

Electrical Connection:

Everlink lug, line || Everlink lug, load

[Ics] Rated Service Breaking Capacity:

25 kA 220...240 V AC 50/60 Hz IEC 60947-2

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz UL 489

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Connection Pitch:

27 mm

Height:

137 mm

Mercury Free:

Yes

Poles Description:

1P

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

Quality Labels:

CE

Ambient Air Temperature For Operation:

-25-70 °C

Trip Unit Technology:

thermal-magneticTM-D,

Ip Degree Of Protection:

front cover IP40 IEC 60529

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Halogen Content Performance:

Halogen free product

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 In

Breaking Capacity Code:

D

Range:

PowerPact

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Continuous Current Rating:

0.8

Device Application:

distribution

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Environmental Disclosure:

ENVPEP1610005EN

9 Mm Pitches:

3

Color:

Gray RAL 7016)

Protected Poles Description:

1t

Pvc Free:

Yes

Pollution Degree:

3 IEC 60947-1

Breaking Capacity:

25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480Y/277 V AC 50/60 Hz UL 489 || 10 kA 125 V DC 50/60 Hz UL 489 || 14 kA 600/347 V AC 50/60 Hz UL 489

Network Frequency:

50/60 Hz

Suitability For Isolation:

yes IEC 60947-2

Mechanical Durability:

15000 cycles IEC 947-1 Annex F ed 5.2

Wire Stripping Length:

20 mm

Product Name:

PowerPact B

Operating Altitude:

6561.68 ft (2000 m) without derating || 5000 m with derating

Eu Rohs Directive:

Compliant with Exemptions

Device Short Name:

BD 030

Product Or Component Type:

circuit breaker

Mounting Mode:

clip-on 35 mm symmetrical DIN rail) || by screws plate)

Sustainable Offer Status:

Green Premium product

Circuit Breaker Application:

HACR rated

Width:

27 mm

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
