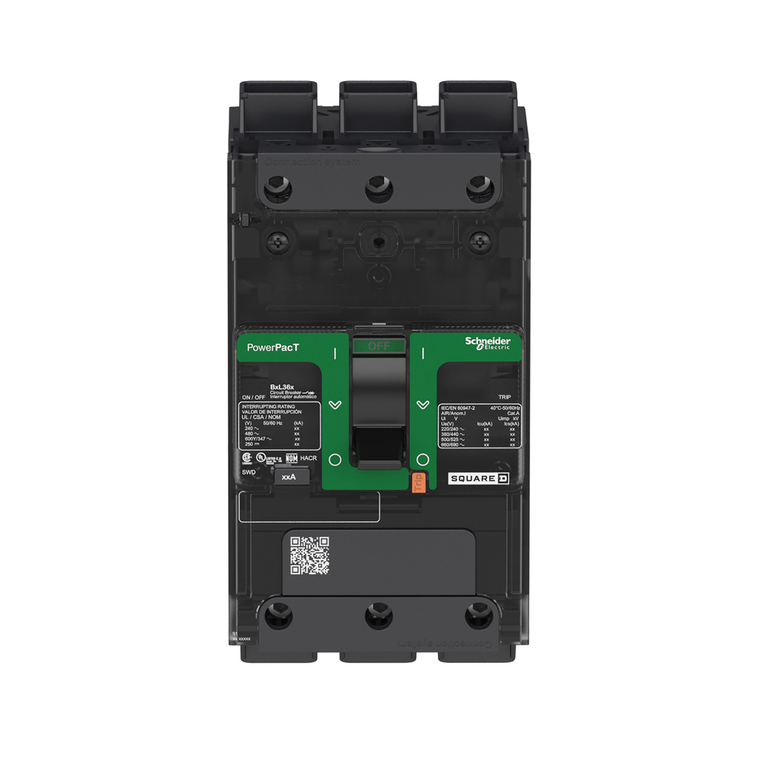

Schneider Electric BDL36040LV Molded Case Circuit Breaker 480V 40A
Schneider Electric
$1,090.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 40A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a control wire terminal on the load end EverLink lug. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Utilisation Category:
- category A
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Mounting Mode:
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Device Application:
- distribution
- Continuous Current Rating:
- 0.8
- Connection Pitch:
- 27 mm
- Sustainable Offer Status:
- Green Premium product
- Standards:
- NEMA AB1 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || NMX J-266 || UL 489 || GB 14048.2 || EN/IEC 60947-2
- Line Rated Current:
- 40-40 A
- Pvc Free:
- Yes
- Poles Description:
- 3P
- Circuit Breaker Application:
- HACR rated
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 14 kA 440 V AC 50/60 Hz IEC 60947-2
- Product Name:
- PowerPact B
- Depth:
- 80 mm
- Width:
- 54 mm
- Quality Labels:
- CE
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- circuit breaker
- Eu Rohs Directive:
- Compliant with Exemptions
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Type:
- toggle
- Range:
- PowerPact
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Accessory / Separate Part Type:
- control wire
- Wire Stripping Length:
- 20 mm
- Local Signalling:
- presence of auxiliary contacts flag green)
- 9 Mm Pitches:
- 6
- Quantity Per Set:
- set of 1
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Height:
- 137 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Ik Degree Of Protection:
- IK07 IEC 62262
- Mercury Free:
- Yes
- Color:
- Gray RAL 7016)
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Network Frequency:
- 50/60 Hz
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Environmental Disclosure:
- ENVPEP1610005EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Suitability For Isolation:
- yes IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Net Weight:
- 0.769 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- thermal-magnetic
- Device Short Name:
- BD 040
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Breaking Capacity Code:
- D
- Ambient Air Temperature For Operation:
- -25-70 °C
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
