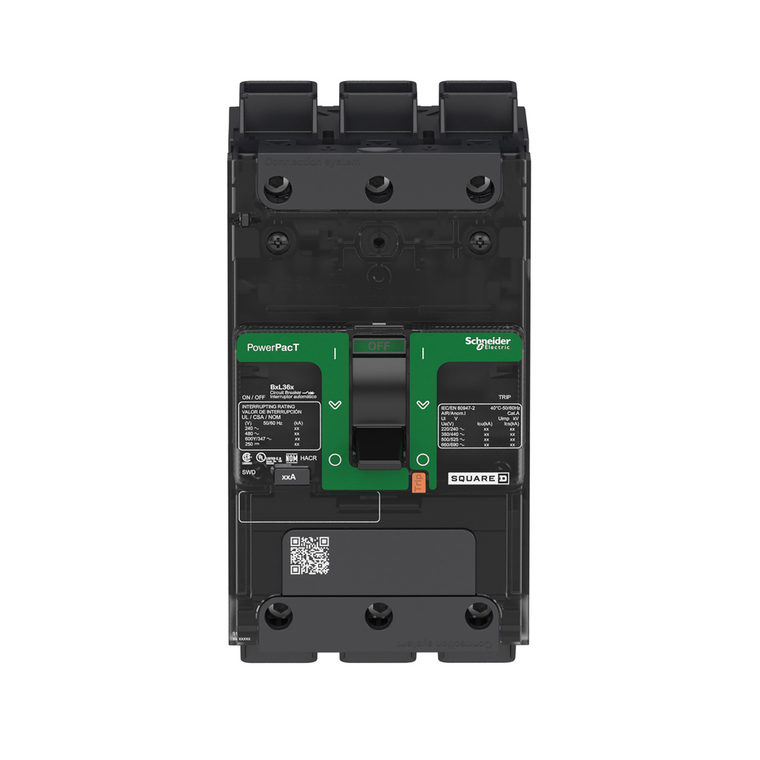

Schneider Electric BDL36045 Molded Case Circuit Brkr 600Y/347V 45A

Schneider Electric BDL36045 Molded Case Circuit Brkr 600Y/347V 45A

Schneider Electric
SKU:
BDL36045
|
UPC:
3606481153098
Availability:
Factory stock
$677.77
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 45A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Width:
81 mm
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Poles Description:
3P
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ue] Rated Operational Voltage:
525 V AC 50/60 Hz UL 489
Height:
137 mm
Ambient Air Temperature For Storage:
-50-85 °C
[Ui] Rated Insulation Voltage:
800 V IEC 60947-2
Tightening Torque:
5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Breaking Capacity Code:
D
Suitability For Isolation:
yes IEC 60947-2
Circuit Breaker Application:
HACR rated
Local Signalling:
presence of auxiliary contacts flag green)
Breaking Capacity:
25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
Product Or Component Type:
circuit breaker
Product Name:
PowerPact B
Environmental Disclosure:
ENVPEP1610005EN
Pollution Degree:
3 IEC 60947-1
Ik Degree Of Protection:
IK07 IEC 62262
Circularity Profile:
N/A
Color:
Gray RAL 7016)
Mercury Free:
Yes
Awg Gauge:
AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Ambient Air Temperature For Operation:
-25-70 °C
Device Short Name:
BD 045
Utilisation Category:
category A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Network Frequency:
50/60 Hz
Product Certifications:
UL || IEC || CCC || EAC || CSA || NOM
Quantity Per Set:
set of 1
Continuous Current Rating:
0.8
Trip Unit Technology:
thermal-magnetic
Connection Pitch:
27 mm
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Rohs Exemption Information:
Yes
Mounting Mode:
clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
Net Weight:
1.074 kg
Quality Labels:
CE
Electrical Durability:
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Eu Rohs Directive:
Compliant with Exemptions
Mechanical Durability:
20000 cycles IEC 947-1 Annex K ed 5.2
Range:
PowerPact
Electrical Connection:
Everlink lug, line || Everlink lug, load
Pvc Free:
Yes
Depth:
80 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Standards:
UL 489 || NMX J-266 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || GB 14048.2 || CSA C22.2 No 5 || NEMA AB1
Wire Stripping Length:
20 mm
Halogen Content Performance:
Halogen free product
Number Of Slots:
1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Control Type:
toggle
Line Rated Current:
45-45 A
[Ics] Rated Service Breaking Capacity:
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
9 Mm Pitches:
9
