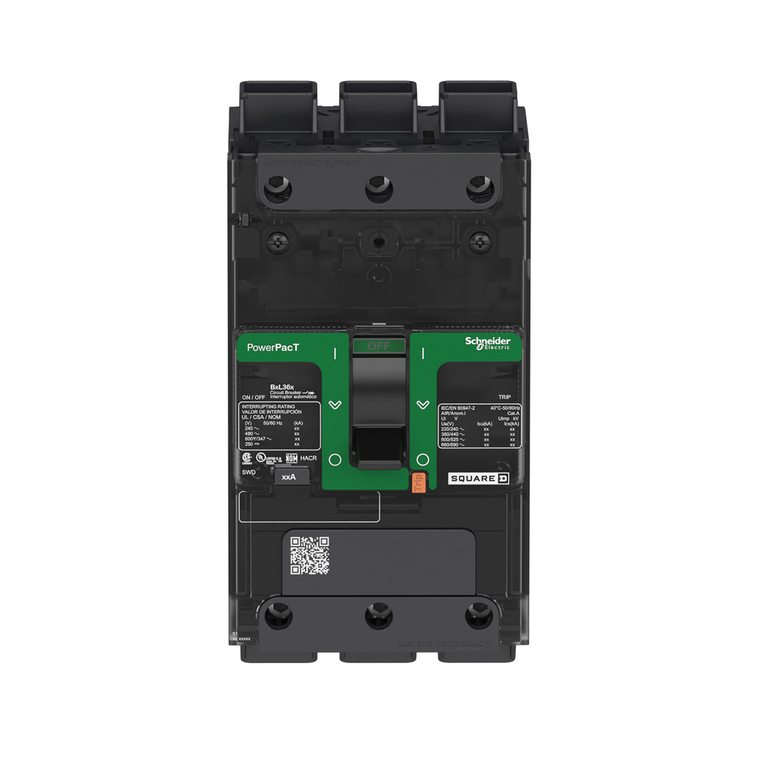

Schneider Electric BDL36050LV Molded Case Circuit Breaker 480V 50A
Schneider Electric
$1,090.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 50A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a control wire terminal on the load end EverLink lug. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Width:
- 54 mm
- Network Frequency:
- 50/60 Hz
- Circularity Profile:
- N/A
- Pollution Degree:
- 3 IEC 60947-1
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Suitability For Isolation:
- yes IEC 60947-2
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Trip Unit Technology:
- thermal-magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Continuous Current Rating:
- 0.8
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Breaking Capacity:
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Mercury Free:
- Yes
- Quantity Per Set:
- set of 1
- 9 Mm Pitches:
- 6
- Depth:
- 80 mm
- Circuit Breaker Application:
- HACR rated
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Short Name:
- BD 050
- Wire Stripping Length:
- 20 mm
- Connection Pitch:
- 27 mm
- Net Weight:
- 0.769 kg
- Standards:
- NEMA AB1 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || NMX J-266 || UL 489 || GB 14048.2 || EN/IEC 60947-2
- Poles Description:
- 3P
- Quality Labels:
- CE
- Ik Degree Of Protection:
- IK07 IEC 62262
- Range:
- PowerPact
- Accessory / Separate Part Type:
- control wire
- Mounting Mode:
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Sustainable Offer Status:
- Green Premium product
- Color:
- Gray RAL 7016)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- toggle
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Environmental Disclosure:
- ENVPEP1610005EN
- Product Or Component Type:
- circuit breaker
- Halogen Content Performance:
- Halogen free product
- Breaking Capacity Code:
- D
- Utilisation Category:
- category A
- Device Application:
- distribution
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 50-50 A
- Pvc Free:
- Yes
- Height:
- 137 mm
- Product Name:
- PowerPact B
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Local Signalling:
- presence of auxiliary contacts flag green)
- Ambient Air Temperature For Operation:
- -25-70 °C
