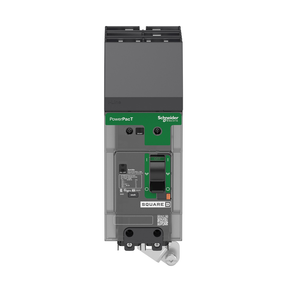

Schneider Electric BGA260704 Molded Case Circuit Breaker 347V/600Y 70
Schneider Electric
$1,404.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 70A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Breaking Capacity:
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
- Mercury Free:
- Yes
- Network Frequency:
- 50/60 Hz
- Electrical Connection:
- I-Line connection, line || lugs, load
- Product Or Component Type:
- circuit breaker
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Control Type:
- toggle
- Breaking Capacity Code:
- G
- Quantity Per Set:
- set of 1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Suitability For Isolation:
- yes IEC 60947-2
- Poles Description:
- 2P
- Pollution Degree:
- 3 IEC 60947-1
- Device Application:
- distribution
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Continuous Current Rating:
- 0.8
- Eu Rohs Directive:
- Compliant with Exemptions
- Width:
- 54 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Mounting Mode:
- I-Line
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Trip Unit Technology:
- thermal-magnetic
- Height:
- 137 mm
- Wire Stripping Length:
- 20 mm
- Net Weight:
- 0.952 kg
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -25-70 °C
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Color:
- Gray RAL 7016)
- Pvc Free:
- Yes
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Halogen Content Performance:
- Halogen free product
- Mounting Height:
- 76.2 mm
- Product Name:
- PowerPact B
- Quality Labels:
- CE
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Standards:
- EN/IEC 60947-2 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || GB 14048.2 || NMX J-266 || UL 489 || NEMA AB1
- Sustainable Offer Status:
- Green Premium product
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Ambient Air Temperature For Storage:
- -50-85 °C
- Depth:
- 89 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Range:
- PowerPact
- Environmental Disclosure:
- ENVPEP1610005EN
- Connection Pitch:
- 27 mm
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Phase Connection:
- BC
- Utilisation Category:
- category A
- Local Signalling:
- presence of auxiliary contacts flag green)
- Line Rated Current:
- 70-70 A
- 9 Mm Pitches:
- 6
- Ik Degree Of Protection:
- IK07 IEC 62262
- Device Short Name:
- BG 070
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
