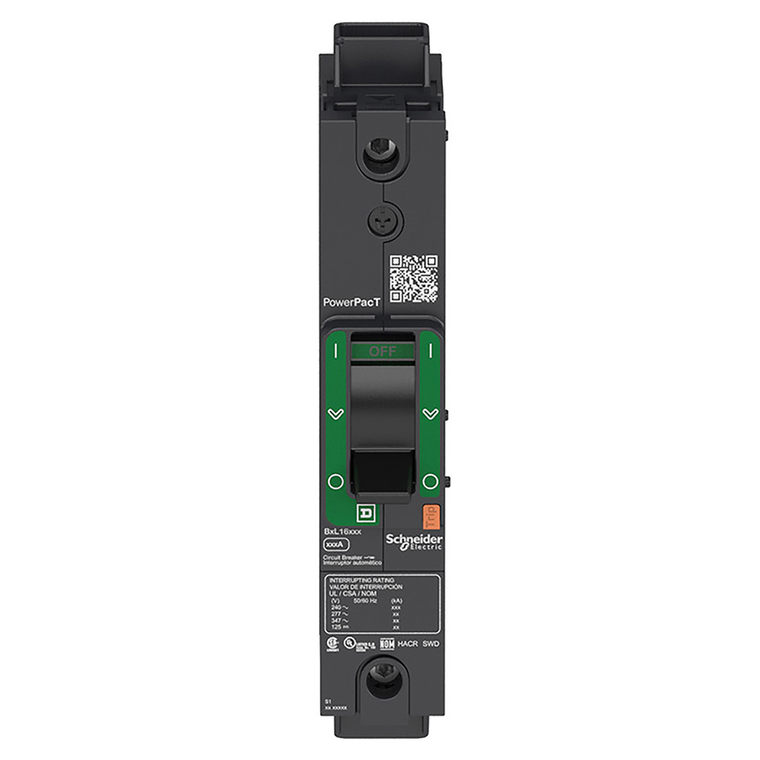

Schneider Electric BGL16050 Molded Case Circuit Breaker 347V 45A
Schneider Electric
$715.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 50A, 1 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. EverLink lugs are also available with unique integrated control wire terminals.
- Trip Unit Technology:
- thermal-magneticTM-D,
- Pollution Degree:
- 3 IEC 60947-1
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- Breaking Capacity:
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480Y/277 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 20 kA 125 V DC UL 489
- Connection Pitch:
- 27 mm
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Trip Unit Name:
- TM-D
- Width:
- 27 mm
- Halogen Content Performance:
- Halogen free product
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ik Degree Of Protection:
- IK07 IEC 62262
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Suitability For Isolation:
- yes IEC 60947-2
- Mercury Free:
- Yes
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- 9 Mm Pitches:
- 3
- Poles Description:
- 1P
- Line Rated Current:
- 50-50 A
- Wire Stripping Length:
- 20 mm
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Height:
- 137 mm
- Quantity Per Set:
- set of 1
- Device Short Name:
- BG 050
- Range:
- PowerPact
- Environmental Disclosure:
- ENVPEP1610005EN
- Utilisation Category:
- category A
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Rohs Exemption Information:
- Yes
- Pvc Free:
- Yes
- Breaking Capacity Code:
- G
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Net Weight:
- 0.51 kg
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Depth:
- 80 mm
- Standards:
- NMX J-266 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || CSA C22.2 No 5 || NEMA AB1 || GB 14048.2 || UL 489
- Eu Rohs Directive:
- Compliant
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- Circuit Breaker Application:
- HACR rated
- Protected Poles Description:
- 1t
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Control Type:
- toggle
- Device Application:
- distribution
- Ambient Air Temperature For Operation:
- -25-70 °C
- Color:
- Gray RAL 7016)
- Continuous Current Rating:
- 0.8
- Quality Labels:
- CE
- Network Frequency:
- 50/60 Hz
- Product Name:
- PowerPact B
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
