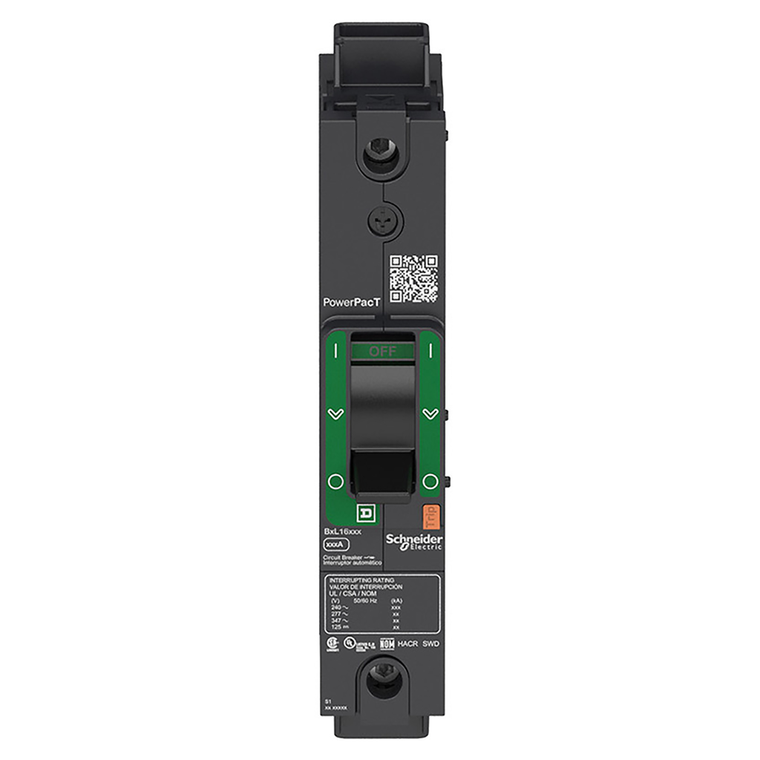

Schneider Electric BGL16060 Molded Case Circuit Breaker 347V 50A
Schneider Electric
$715.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 60A, 1 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. EverLink lugs are also available with unique integrated control wire terminals.
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- 9 Mm Pitches:
- 3
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Control Type:
- toggle
- Pollution Degree:
- 3 IEC 60947-1
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 In
- Protected Poles Description:
- 1t
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz UL 489
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Environmental Disclosure:
- ENVPEP1610005EN
- Product Name:
- PowerPact B
- Range:
- PowerPact
- Line Rated Current:
- 60-60 A
- Connection Pitch:
- 27 mm
- Quality Labels:
- CE
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Quantity Per Set:
- set of 1
- Breaking Capacity Code:
- G
- Mechanical Durability:
- 15000 cycles IEC 947-1 Annex F ed 5.2
- Trip Unit Name:
- TM-D
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Storage:
- -50-85 °C
- Device Application:
- distribution
- Height:
- 137 mm
- Breaking Capacity:
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480Y/277 V AC 50/60 Hz UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489 || 20 kA 125 V DC UL 489
- Pvc Free:
- Yes
- Poles Description:
- 1P
- Network Frequency:
- 50/60 Hz
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Continuous Current Rating:
- 0.8
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Eu Rohs Directive:
- Compliant
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Depth:
- 80 mm
- Color:
- Gray RAL 7016)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Trip Unit Technology:
- thermal-magneticTM-D,
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || EN/IEC 60947-5-1 || UL 489 || CSA C22.2 No 5 || NEMA AB1 || NMX J-266
- Width:
- 27 mm
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Wire Stripping Length:
- 20 mm
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Halogen Content Performance:
- Halogen free product
- Device Short Name:
- BG 060
- Net Weight:
- 0.51 kg
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Utilisation Category:
- category A
- Sustainable Offer Status:
- Green Premium product
- Mounting Mode:
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Ik Degree Of Protection:
- IK07 IEC 62262
- Suitability For Isolation:
- yes IEC 60947-2
