Schneider Electric BGL36070 Molded Case Circuit Brkr 600Y/347V 70A
Schneider Electric
$1,531.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

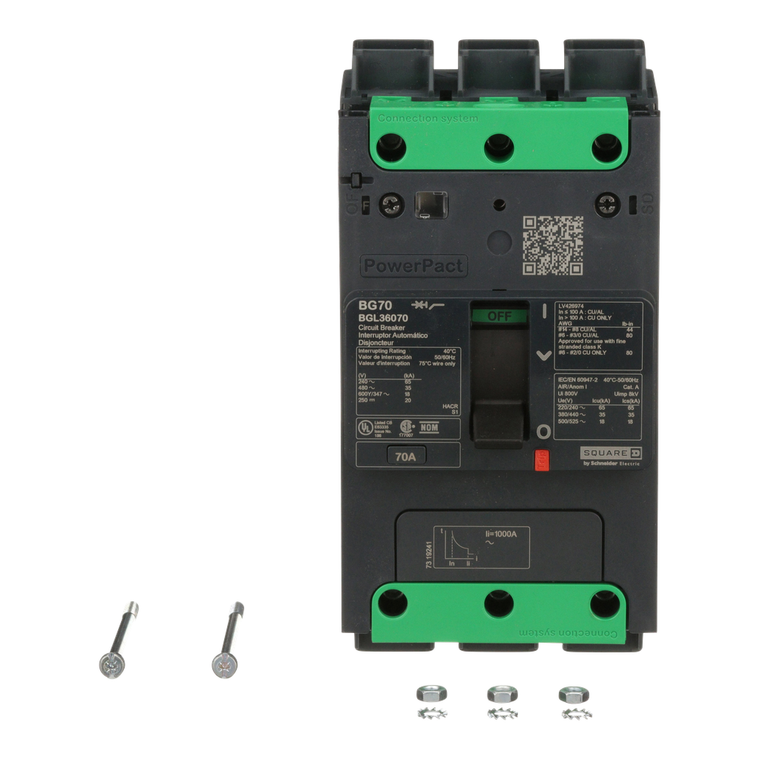

Schneider Electric BGL36070 Molded Case Circuit Brkr 600Y/347V 70A
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ue] Rated Operational Voltage:
- 525 V AC 50/60 Hz UL 489
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mercury Free:
- Yes
- Quantity Per Set:
- set of 1
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Device Application:
- distribution
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Utilisation Category:
- category A
- Circularity Profile:
- N/A
- Device Short Name:
- BG 070
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Halogen Content Performance:
- Halogen free product
- 9 Mm Pitches:
- 9
- Breaking Capacity Code:
- G
- Control Type:
- toggle
- Product Or Component Type:
- circuit breaker
- Ik Degree Of Protection:
- IK07 IEC 62262
- Height:
- 137 mm
- Trip Unit Technology:
- thermal-magnetic
- Net Weight:
- 1.074 kg
- Network Frequency:
- 50/60 Hz
- Width:
- 81 mm
- Mounting Mode:
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Pvc Free:
- Yes
- Poles Description:
- 3P
- Environmental Disclosure:
- ENVPEP1610005EN
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Connection Pitch:
- 27 mm
- Local Signalling:
- presence of auxiliary contacts flag green)
- Color:
- Gray RAL 7016)
- Depth:
- 80 mm
- Continuous Current Rating:
- 0.8
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pollution Degree:
- 3 IEC 60947-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Eu Rohs Directive:
- Compliant with Exemptions
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Line Rated Current:
- 70-70 A
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Standards:
- NEMA AB1 || GB 14048.2 || UL 489 || EN/IEC 60947-2 || EN/IEC 60947-5-1 || NMX J-266 || CSA C22.2 No 5
- Ambient Air Temperature For Operation:
- -25-70 °C
- Breaking Capacity:
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 250 V DC UL 489 || 20 kA 600Y/347 V AC 50/60 Hz UL 489
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Product Name:
- PowerPact B
- Wire Stripping Length:
- 20 mm
- Sustainable Offer Status:
- Green Premium product
- Quality Labels:
- CE
- Ambient Air Temperature For Storage:
- -50-85 °C
- Range:
- PowerPact
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
