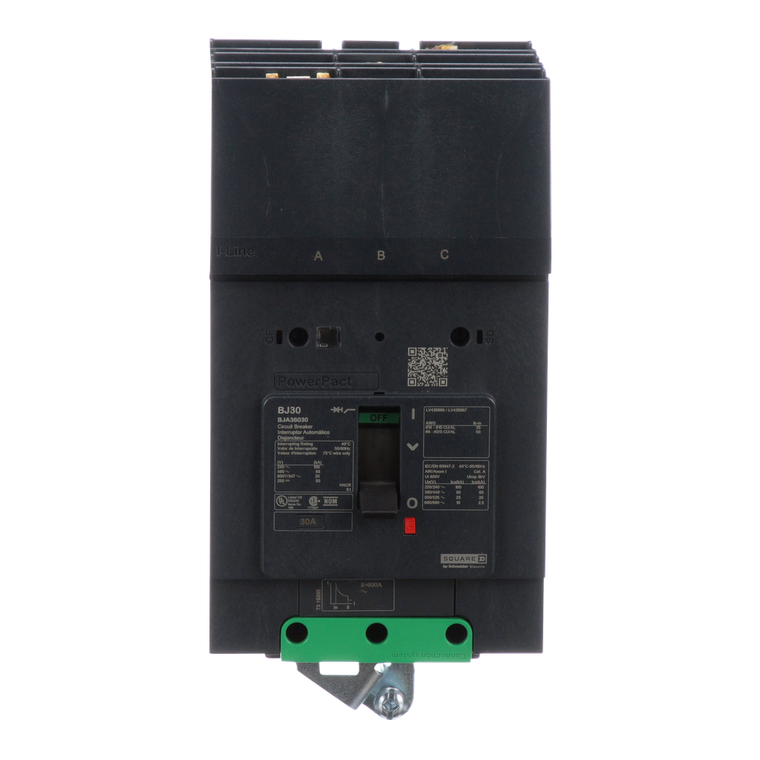

Schneider Electric BJA36030 Molded Case Circuit Brkr 600Y/347V 30A
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 30A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Breaking Capacity Code:
- J
- Phase Connection:
- ABC
- Electrical Connection:
- I-Line connection, line || lugs, load
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz UL 489
- Product Or Component Type:
- circuit breaker
- Continuous Current Rating:
- 0.8
- Poles Description:
- 3P
- Pvc Free:
- Yes
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Local Signalling:
- presence of auxiliary contacts flag green)
- Network Frequency:
- 50/60 Hz
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Trip Unit Technology:
- thermal-magnetic
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Device Short Name:
- BJ 030
- Ik Degree Of Protection:
- IK07 IEC 62262
- Width:
- 81 mm
- Circuit Breaker Application:
- HACR rated
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Standards:
- GB 14048.2 || EN/IEC 60947-2 || CSA C22.2 No 5 || NEMA AB1 || NMX J-266 || EN/IEC 60947-5-1 || UL 489
- Halogen Content Performance:
- Halogen free product
- Depth:
- 89 mm
- Device Application:
- distribution
- Circularity Profile:
- N/A
- Mounting Mode:
- I-Line
- Net Weight:
- 1.315 kg
- Suitability For Isolation:
- yes IEC 60947-2
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Height:
- 137 mm
- Quantity Per Set:
- set of 1
- Breaking Capacity:
- 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Control Type:
- toggle
- Product Name:
- PowerPact B
- Utilisation Category:
- category A
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Height:
- 114 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Line Rated Current:
- 30-30 A
- Color:
- Gray RAL 7016)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Rohs Exemption Information:
- Yes
- 9 Mm Pitches:
- 9
- Environmental Disclosure:
- ENVPEP1610005EN
- Range:
- PowerPact
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Pollution Degree:
- 3 IEC 60947-1
- Ambient Air Temperature For Storage:
- -50-85 °C
- Wire Stripping Length:
- 20 mm
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Connection Pitch:
- 27 mm
- Quality Labels:
- CE
