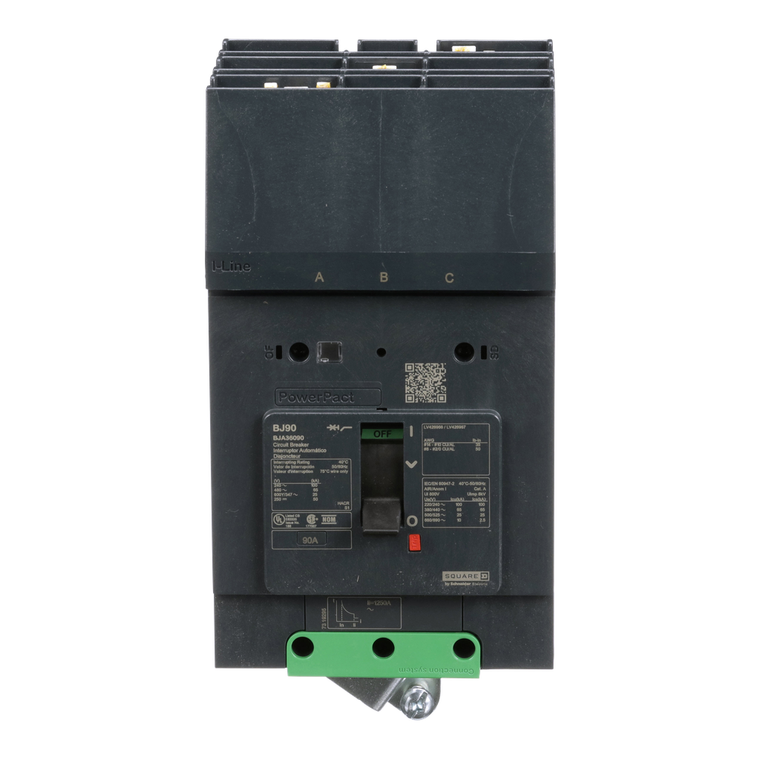

Schneider Electric BJA36090 Molded Case Circuit Brkr 600Y/347V 90A
Schneider Electric
$2,158.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 90A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Net Weight:
- 1.315 kg
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Environmental Disclosure:
- ENVPEP1610005EN
- Device Application:
- distribution
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Connection Pitch:
- 27 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Height:
- 114 mm
- Breaking Capacity:
- 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
- Height:
- 137 mm
- Ik Degree Of Protection:
- IK07 IEC 62262
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- BJ 090
- Range:
- PowerPact
- Control Type:
- toggle
- Suitability For Isolation:
- yes IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz UL 489
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Depth:
- 89 mm
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
- Utilisation Category:
- category A
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Awg Gauge:
- AWG 14...AWG 2/0 aluminium/copper
- Breaking Capacity Code:
- J
- Width:
- 81 mm
- Continuous Current Rating:
- 0.8
- Phase Connection:
- ABC
- Local Signalling:
- presence of auxiliary contacts flag green)
- Pollution Degree:
- 3 IEC 60947-1
- Product Or Component Type:
- circuit breaker
- Wire Stripping Length:
- 20 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Line Rated Current:
- 90-90 A
- Electrical Connection:
- I-Line connection, line || lugs, load
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Standards:
- GB 14048.2 || EN/IEC 60947-2 || CSA C22.2 No 5 || UL 489 || EN/IEC 60947-5-1 || NEMA AB1 || NMX J-266
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Gray RAL 7016)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Halogen Content Performance:
- Halogen free product
- Mounting Mode:
- I-Line
- Trip Unit Technology:
- thermal-magnetic
- Circuit Breaker Application:
- HACR rated
- Network Frequency:
- 50/60 Hz
- Quantity Per Set:
- set of 1
- Quality Labels:
- CE
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Poles Description:
- 3P
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- 9 Mm Pitches:
- 9
- Product Name:
- PowerPact B
- Tightening Torque:
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
