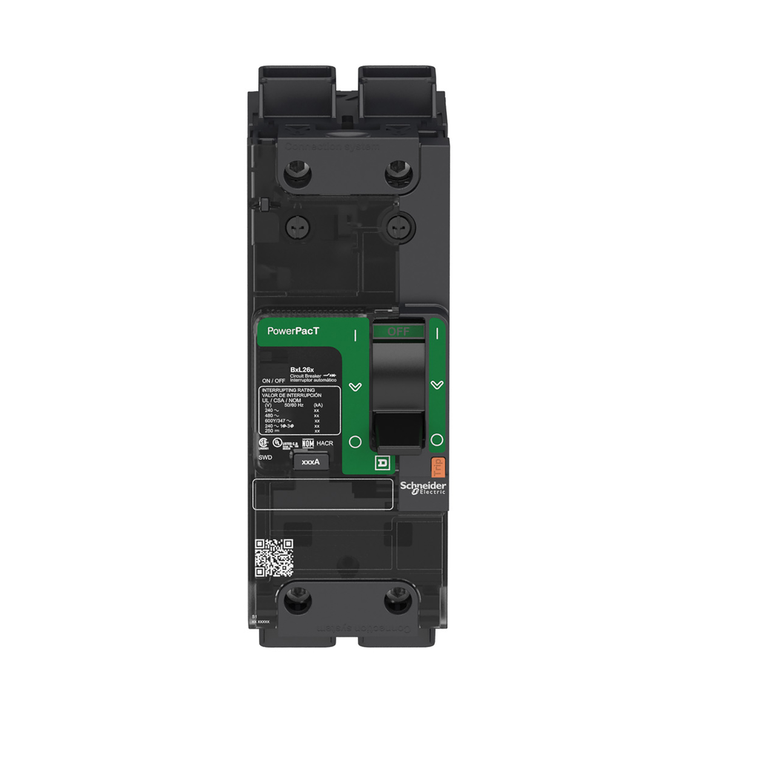

Schneider Electric BJL26050 Molded Case Circuit Brkr 600Y/347V 50A

(No reviews yet) Write a Review

Write a Review

Schneider Electric BJL26050 Molded Case Circuit Brkr 600Y/347V 50A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BJL26050

UPC:

785901078302

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electrical Connection:

Everlink lug, line || Everlink lug, load

Device Application:

distribution

Suitability For Isolation:

yes IEC 60947-2

9 Mm Pitches:

6

Halogen Content Performance:

Halogen free product

Line Rated Current:

50-50 A

Network Frequency:

50/60 Hz

Number Of Slots:

1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in)

[Ui] Rated Insulation Voltage:

800 V IEC 60947-2

[Ics] Rated Service Breaking Capacity:

100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2

Product Certifications:

UL || IEC || CCC || EAC || CSA || NOM

Height:

137 mm

Standards:

CSA C22.2 No 5 || EN/IEC 60947-5-1 || UL 489 || GB 14048.2 || NMX J-266 || EN/IEC 60947-2 || NEMA AB1

Ik Degree Of Protection:

IK07 IEC 62262

Device Short Name:

BJ 050

Tightening Torque:

5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)

Local Signalling:

presence of auxiliary contacts flag green)

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Control Type:

toggle

Mounting Mode:

clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)

Mercury Free:

Yes

Range:

PowerPact

Quantity Per Set:

set of 1

Ip Degree Of Protection:

front cover IP40 IEC 60529

Pollution Degree:

3 IEC 60947-1

Environmental Disclosure:

ENVPEP1610005EN

Width:

54 mm

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Compliant with Exemptions

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Pvc Free:

Yes

Circuit Breaker Application:

HACR rated

Product Name:

PowerPact B

Ambient Air Temperature For Operation:

-25-70 °C

Awg Gauge:

AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Wire Stripping Length:

20 mm

Connection Pitch:

27 mm

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Depth:

80 mm

Color:

Gray RAL 7016)

Ambient Air Temperature For Storage:

-50-85 °C

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz UL 489

Mechanical Durability:

20000 cycles IEC 947-1 Annex K ed 5.2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Breaking Capacity Code:

J

Quality Labels:

CE

Utilisation Category:

category A

Circularity Profile:

N/A

Product Or Component Type:

circuit breaker

Continuous Current Rating:

0.8

Breaking Capacity:

100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489

Poles Description:

2P

Trip Unit Technology:

thermal-magnetic

Electrical Durability:

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Net Weight:

0.769 kg
