Schneider Electric BJL36070 Molded Case Circuit Brkr 600Y/347V 70A
Schneider Electric
$1,889.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

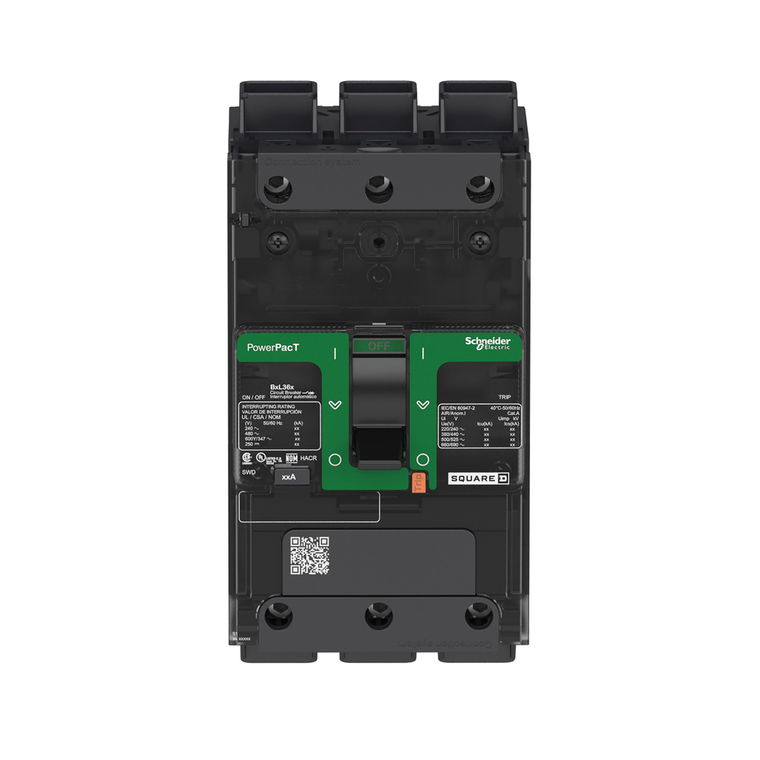

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Rohs Exemption Information:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ik Degree Of Protection:
- IK07 IEC 62262
- Control Type:
- toggle
- Circularity Profile:
- N/A
- Depth:
- 80 mm
- Sustainable Offer Status:
- Green Premium product
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 10 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
- Poles Description:
- 3P
- Connection Pitch:
- 27 mm
- [Ui] Rated Insulation Voltage:
- 800 V IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity Code:
- J
- Network Frequency:
- 50/60 Hz
- Device Short Name:
- BJ 070
- Number Of Slots:
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Device Application:
- distribution
- Range:
- PowerPact
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Environmental Disclosure:
- ENVPEP1610005EN
- Local Signalling:
- presence of auxiliary contacts flag green)
- Electrical Connection:
- Everlink lug, line || Everlink lug, load
- Pvc Free:
- Yes
- Wire Stripping Length:
- 20 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- Suitability For Isolation:
- yes IEC 60947-2
- Utilisation Category:
- category A
- Quality Labels:
- CE
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz UL 489
- Ambient Air Temperature For Storage:
- -50-85 °C
- Standards:
- CSA C22.2 No 5 || EN/IEC 60947-2 || UL 489 || EN/IEC 60947-5-1 || GB 14048.2 || NEMA AB1 || NMX J-266
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Name:
- PowerPact B
- Color:
- Gray RAL 7016)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- 9 Mm Pitches:
- 9
- Mounting Mode:
- clip-on 35 x 15 mm symmetrical DIN rail) || by screws plate)
- Width:
- 81 mm
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Operation:
- -25-70 °C
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Height:
- 137 mm
- Net Weight:
- 1.074 kg
- Quantity Per Set:
- set of 1
- Pollution Degree:
- 3 IEC 60947-1
- Awg Gauge:
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Mechanical Durability:
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Breaking Capacity:
- 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
- Product Or Component Type:
- circuit breaker
- Line Rated Current:
- 70-70 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Halogen Content Performance:
- Halogen free product
- Trip Unit Technology:
- thermal-magnetic
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
