Schneider Electric BMH1402P06F2A Motor 140Mm Iec 18,5Nm Ip54 3900W No
Schneider Electric
$2,223.33
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

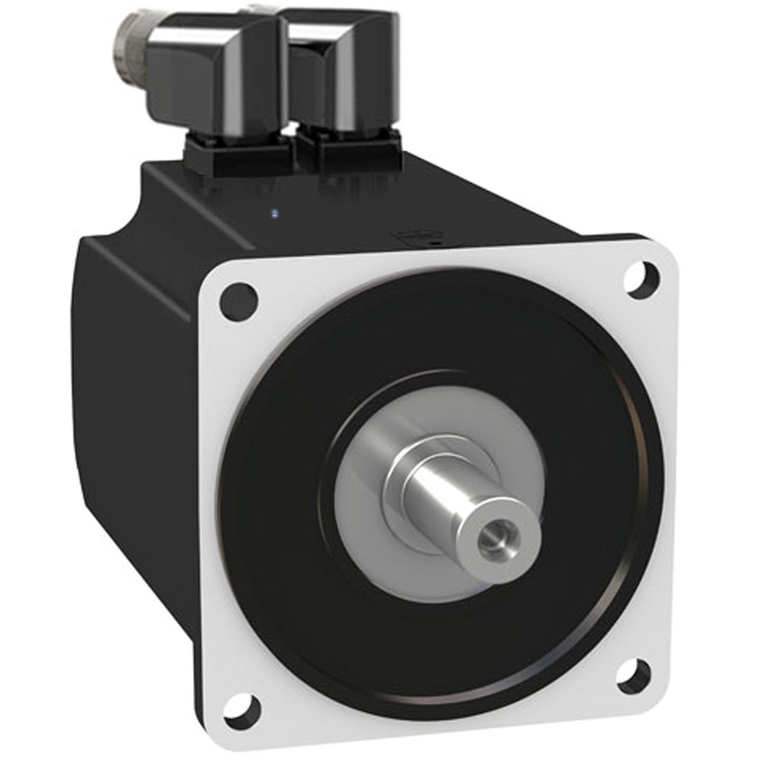

Schneider Electric BMH1402P06F2A Motor 140Mm Iec 18,5Nm Ip54 3900W No
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 4000RPM, smooth shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (32768 points/turn) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 16.83A and a continuous power of 4.44W. The shaft dimensions are 24mm (Diameter) x 50mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP54 rated product. Its dimensions are 227mm (Length) x 140mm (Width), centring collar dimensions are 3.5mm (Depth) x 130mm (Diameter) with 165mm circle diameter of the mounting hole. It weighs 14.3kg. This product is compatible with Lexium 32 servo drives. It supports international standard 140mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Nominal Output Power:
- 3500 W LXM32.D72N4 24 A, 400 V, three phase || 3500 W LXM32.D72N4 24 A, 480 V, three phase
- Device Short Name:
- BMH
- Shaft End:
- smooth shaft
- Length:
- 227 mm
- Circularity Profile:
- N/A
- Back Emf Constant:
- 70.7 V/krpm 120 °C
- Nominal Speed:
- 3000 rpm LXM32.D72N4 24 A, 400 V, three phase || 3000 rpm LXM32.D72N4 24 A, 480 V, three phase
- Type Of Cooling:
- natural convection
- Brake Pull-In Power:
- 18 W
- Maximum Radial Force Fr:
- 2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm
- Product Compatibility:
- LXM32.D72N4 400...480 V three phase
- Rotor Inertia:
- 33.5 kg.cm²
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Maximum Permanent Current:
- 57.4 A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Centring Collar Depth:
- 3.5 mm
- Maximum Mechanical Speed:
- 4000 rpm
- Phase:
- three phase
- Mounting Holes Diameter:
- 11 mm
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP111002EN
- Maximum Axial Force Fa:
- 0.2 x Fr
- Speed Feedback Resolution:
- 32768 points/turn
- Stator Inductance:
- 3 mH 20 °C
- Continuous Power:
- 4.44 W
- Circle Diameter Of The Mounting Holes:
- 165 mm
- Stator Electrical Time Constant:
- 13 ms 20 °C
- Number Of Motor Stacks:
- 2
- Product Or Component Type:
- servo motor
- Number Of Motor Poles:
- 10
- Motor Flange Size:
- 140 mm
- Shaft Length:
- 50 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Continuous Stall Torque:
- 18.5 N.m LXM32.D72N4 24 A, 400 V, three phase || 18.5 N.m LXM32.D72N4 24 A, 480 V, three phase
- Centring Collar Diameter:
- 130 mm
- Mounting Support:
- international standard flange
- Number Of Mounting Holes:
- 4
- Stator Resistance:
- 0.23 Ohm 20 °C
- Feedback Type:
- single turn SinCos Hiperface
- Rohs Exemption Information:
- Yes
- Torque Constant:
- 1.1 N.m/A 120 °C
- Shaft Diameter:
- 24 mm
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Compatibility:
- Lexium 32
- Continuous Stall Current:
- 16.83 A
- Ip Degree Of Protection:
- IP54 standard
- Peak Stall Torque:
- 50.3 N.m LXM32.D72N4 24 A, 400 V, three phase || 50.3 N.m LXM32.D72N4 24 A, 480 V, three phase
- Holding Brake:
- with
- Maximum Current Irms:
- 57.4 A LXM32.D72N4
- Holding Torque:
- 18 N.m holding brake
- Net Weight:
- 14.3 kg
- Second Shaft:
- without second shaft end
- Warranty:
- 18 months
- Nominal Torque:
- 12.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 12.2 N.m LXM32.D72N4 24 A, 480 V, three phase
- [Us] Rated Supply Voltage:
- 480 V
- Electrical Connection:
- rotatable right-angled connectors
