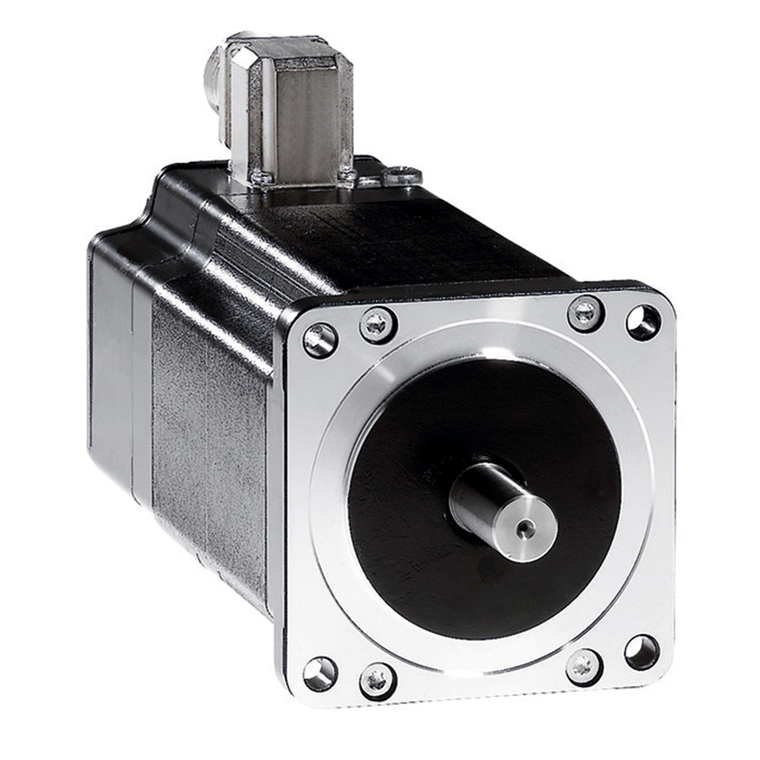

Schneider Electric BRS39BW461FCA Lexium Stepper Motor, Size 90, 6.78 Nm,

Schneider Electric BRS39BW461FCA Lexium Stepper Motor, Size 90, 6.78 Nm,

Schneider Electric
SKU:
BRS39BW461FCA
|
UPC:
3389119224123
$1,680.19
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
3-phase stepper motor - 6.78 Nm - shaft Ø 14 mm - L=128 mm - with brake - conn
Additional Information
Number Of Motor Poles:
6
Time Constant:
10 ms
Speed Feedback Resolution:
10000 points/turn
Circle Diameter Of The Mounting Holes:
98.99 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Altitude:
<= 3280.84 ft (1000 m) without power derating
Maximum Radial Force Fr:
110 N first shaft end) || 50 N second shaft end)
Feedback Type:
single turn encoder
Shaft End:
untapped
Mounting Support:
flange
Temperature Class:
F winding IEC 60034-1
Vibration Resistance:
20 m/s² maximum || A IEC 60034-14
Environmental Disclosure:
ENVPEP111101EN
Continuous Stall Torque:
5.78 N.m
Number Of Mounting Holes:
4
Type Of Cooling:
natural convection
Peak Stall Torque:
5.78 N.m
Warranty:
18 months
Standards:
IEC 50347 || IEC 60072-1
China Rohs Regulation:
X
Accuracy Error:
+/- 6 arc min
Rotor Inertia:
3.3 kg.cm²
Ip Degree Of Protection:
shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5
Electrical Connection:
connector
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Nominal Torque:
6 N.m
Mounting Holes Diameter:
6.5 mm
Circularity Profile:
N/A
Holding Torque:
6.78 N.m
Sustainable Offer Status:
Green Premium product
Maximum Starting Frequency:
5.3 kHz
Line Rated Current:
2.25 A
Resistance:
6.5 Ohm winding)
Device Short Name:
BRS3
Length:
171 mm
Centring Collar Depth:
2 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Centring Collar Diameter:
60 mm
Shaft Length:
30 mm
Maximum Mechanical Speed:
3000 rpm
Angular Acceleration:
200000 rad/s²
Holding Brake:
with
Supply Voltage Limits:
230-230 V AC || 325-325 V DC
Shaft Diameter:
14 mm
Second Shaft:
without second shaft end
Ambient Air Temperature For Storage:
-25-70 °C
Net Weight:
4.3 kg
Service Life In Hours:
20000 h bearing)
Motor Flange Size:
85 mm
Ambient Air Temperature For Operation:
-25-40 °C
Motor Type:
3-phase stepper motor
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Product Or Component Type:
motion control motor
Relative Humidity:
15-85 % without condensation
Maximum Axial Force Fa:
175 N tensile force) || 30 N force pressure)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pvc Free:
Yes
Range Compatibility:
Lexium SD3
Resolution:
1000 points/turn || 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
