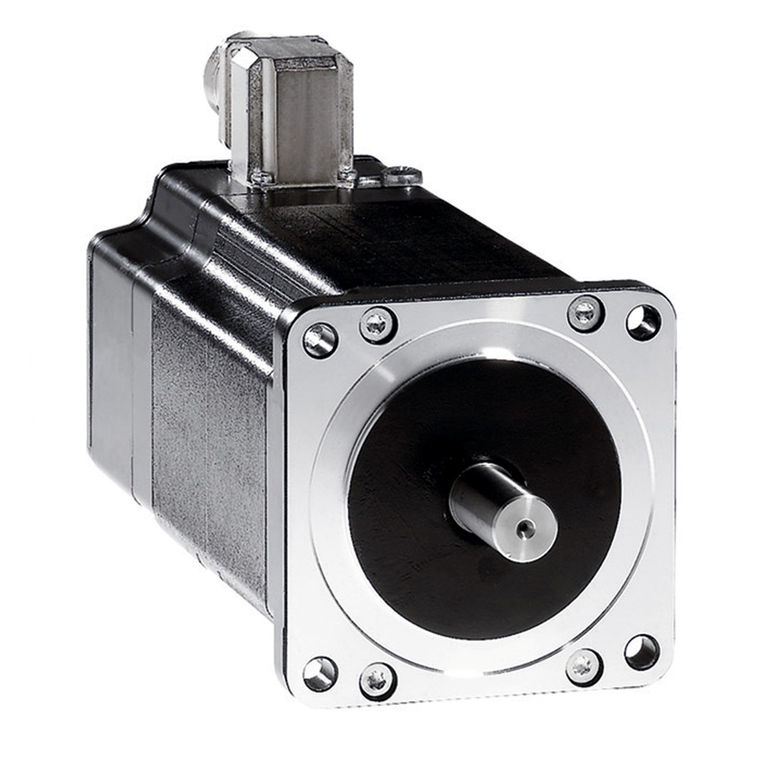

Schneider Electric BRS39BW761FCA Lexium Stepper Motor, Size 90, 6.78 Nm,

(No reviews yet) Write a Review

Write a Review

Schneider Electric BRS39BW761FCA Lexium Stepper Motor, Size 90, 6.78 Nm,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BRS39BW761FCA

UPC:

3.38912E+12

MPN:

Condition:

New

Peak Stall Torque:

5.78 N.m

Shaft End:

woodruff key

Mercury Free:

Yes

Electrical Connection:

connector

Device Short Name:

BRS3

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Motor Type:

3-phase stepper motor

Environmental Disclosure:

ENVPEP111101EN

Continuous Stall Torque:

5.78 N.m

Centring Collar Diameter:

60 mm

Time Constant:

10 ms

Shaft Diameter:

14 mm

Maximum Mechanical Speed:

3000 rpm

Circularity Profile:

N/A

Product Or Component Type:

motion control motor

Feedback Type:

single turn encoder

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Cooling:

natural convection

Shaft Length:

30 mm

Rohs Exemption Information:

Yes

Circle Diameter Of The Mounting Holes:

98.99 mm

Nominal Torque:

6 N.m

Centring Collar Depth:

2 mm

Ambient Air Temperature For Storage:

-25-70 °C

Number Of Motor Poles:

6

Service Life In Hours:

20000 h bearing)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Number Of Mounting Holes:

4

Range Compatibility:

Lexium SD3

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Accuracy Error:

+/- 6 arc min

Length:

217 mm

Resolution:

1000 points/turn || 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution

Sustainable Offer Status:

Green Premium product

Maximum Radial Force Fr:

110 N first shaft end) || 50 N second shaft end)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Starting Frequency:

5.3 kHz

Speed Feedback Resolution:

10000 points/turn

Rotor Inertia:

3.3 kg.cm²

Angular Acceleration:

200000 rad/s²

Warranty:

18 months

Resistance:

6.5 Ohm winding)

Net Weight:

4.3 kg

Relative Humidity:

15-85 % without condensation

Holding Torque:

6.78 N.m

Line Rated Current:

2.25 A

Mounting Holes Diameter:

6.5 mm

Holding Brake:

with

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Ambient Air Temperature For Operation:

-25-40 °C

Mounting Support:

flange

China Rohs Regulation:

X

Motor Flange Size:

85 mm

Pvc Free:

Yes

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Temperature Class:

F winding IEC 60034-1

Second Shaft:

without second shaft end

Standards:

IEC 60072-1 || IEC 50347

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Axial Force Fa:

175 N tensile force) || 30 N force pressure)
