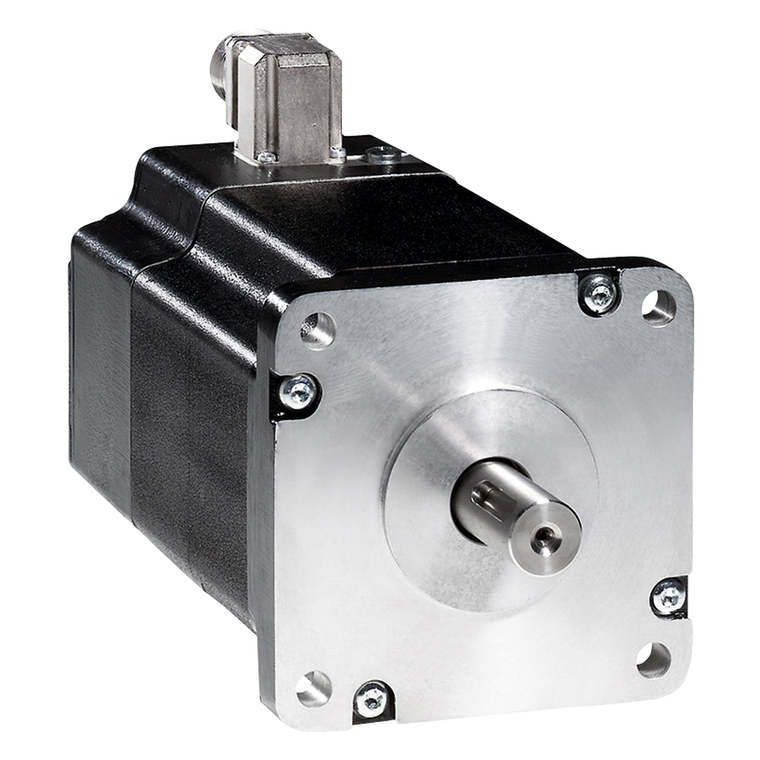

Schneider Electric BRS3ACW851FCA Lexium Stepper Motor, Size 110, 13.5 Nm,

(No reviews yet) Write a Review

Write a Review

Schneider Electric BRS3ACW851FCA Lexium Stepper Motor, Size 110, 13.5 Nm,

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BRS3ACW851FCA

UPC:

3389119224222

MPN:

Condition:

New

Holding Brake:

with

Shaft Diameter:

19 mm

Sustainable Offer Status:

Green Premium product

Operating Altitude:

<= 3280.84 ft (1000 m) without power derating

Net Weight:

8.2 kg

Motor Type:

3-phase stepper motor

Feedback Type:

index pulse

Rohs Exemption Information:

Yes

Line Rated Current:

4.1 A

Mercury Free:

Yes

Centring Collar Depth:

3 mm

Circularity Profile:

N/A

Peak Stall Torque:

11.42 N.m

Pvc Free:

Yes

Vibration Resistance:

20 m/s² maximum || A IEC 60034-14

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-25-70 °C

Accuracy Error:

+/- 6 arc min

Angular Acceleration:

200000 rad/s²

Ambient Air Temperature For Operation:

-25-40 °C

Holding Torque:

13.5 N.m

Service Life In Hours:

20000 h bearing)

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP56 IEC 60034-5

Standards:

IEC 60072-1 || IEC 50347

Circle Diameter Of The Mounting Holes:

125.86 mm

Product Or Component Type:

motion control motor

Length:

180 mm

Temperature Class:

F winding IEC 60034-1

Time Constant:

22 ms

Environmental Disclosure:

ENVPEP111101EN

Shaft End:

parallel key

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Mechanical Speed:

3000 rpm

Number Of Mounting Holes:

4

Rotor Inertia:

10.5 kg.cm²

Centring Collar Diameter:

56 mm

Maximum Starting Frequency:

4.7 kHz

Supply Voltage Limits:

230-230 V AC || 325-325 V DC

Resistance:

1.8 Ohm winding)

Device Short Name:

BRS3

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Range Compatibility:

Lexium SD3

Resolution:

1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution || 1000 points/turn

China Rohs Regulation:

X

Speed Feedback Resolution:

10000 points/turn

Number Of Motor Poles:

6

Warranty:

18 months

Relative Humidity:

15-85 % without condensation

Mounting Support:

flange

Shaft Length:

40 mm

Mounting Holes Diameter:

9 mm

Maximum Axial Force Fa:

330 N tensile force) || 60 N force pressure)

Continuous Stall Torque:

11.42 N.m

Nominal Torque:

12 N.m

Electrical Connection:

connector

Maximum Radial Force Fr:

150 N second shaft end) || 300 N first shaft end)

Type Of Cooling:

natural convection

Motor Flange Size:

110 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Second Shaft:

without second shaft end
