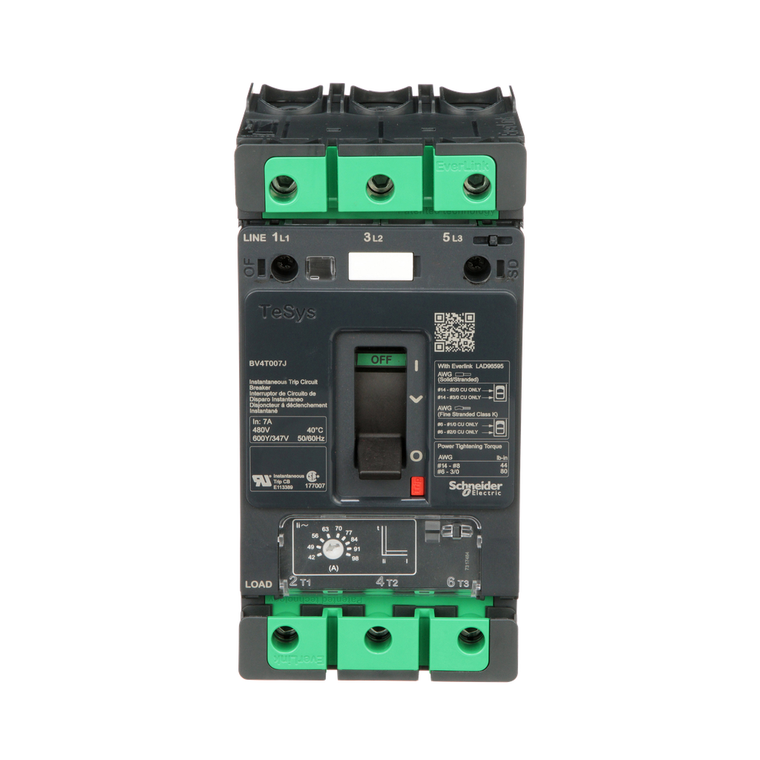

Schneider Electric BV4T007J Motor Circuit Protector 600Y/347V 7A

(No reviews yet) Write a Review
SKU:
BV4T007J
UPC:
3606489503666
Condition:
New
Ik Degree Of Protection:
IK07 IEC 62262
Utilisation Category:
category A
Device Short Name:
BV4
Trip Unit Technology:
magnetic
Operating Altitude:
6561.68 ft (2000 m) without derating || > 2000...5000 m with derating
Standards:
CSA C22.2 No 5 || UL 489
Mounting Support:
75 mm symmetrical DIN rail || 35 mm symmetrical DIN rail || plate
Local Signalling:
for presence of auxiliary contacts flag (green)
Halogen Content Performance:
Halogen free plastic parts product
Control Type:
toggle
Rohs Exemption Information:
Yes
Connection Pitch:
27 mm
Performance Level:
high performance
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
Motor Circuit Protector
Pvc Free:
Yes
Height:
162 mm
Ip Degree Of Protection:
IP40 front face IEC 60529
Quantity Per Set:
1
Mechanical Durability:
40000 cycles
Product Certifications:
CSA || UL
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage:
-50-85 °C
[Ue] Rated Operational Voltage:
600Y/347 V AC 50/60 Hz
Range:
TeSys
Trip Unit Rating:
42-98 A 40 °C
Product Name:
TeSys BV4
Line Rated Current:
7 A 40 °C
Wire Stripping Length:
20 mm
Number Of Slots:
1 alarm switch fault signalling contact, plug-in || 1 voltage release electrical remote tripping, plug-in || 1 auxiliary switch open/close contact, plug-in
Mounting Mode:
by clips || by screws
Depth:
116 mm
Mechanical Robustness:
vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
Protection Type:
short-circuit
Connections - Terminals:
2 EverLink BTR screw connectors 1.5-70 mm² AWG 14...AWG 2/0), solid copper || 2 EverLink BTR screw connectors 1.5-50 mm² AWG 6...AWG 1/0), flexible copper
Net Weight:
1.5 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-25-70 °C
Electrical Durability:
40000 cycles AC-3 440 V In/2 || 40000 cycles AC-3 440 V In
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width:
81 mm
Tightening Torque:
5-5 N.m 10-10 mm² (AWG 8) || 9-9 N.m 16-16 mm² (AWG 6)
Color:
Gray RAL 7016)
Device Application:
motor
Mercury Free:
Yes
Poles Description:
3P
Catalog:
View
Datasheet:
View
$500.00

Description

The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with high fault has a 7A rating. It also has an adjustable instantaneous trip rating of 42 to 98 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
