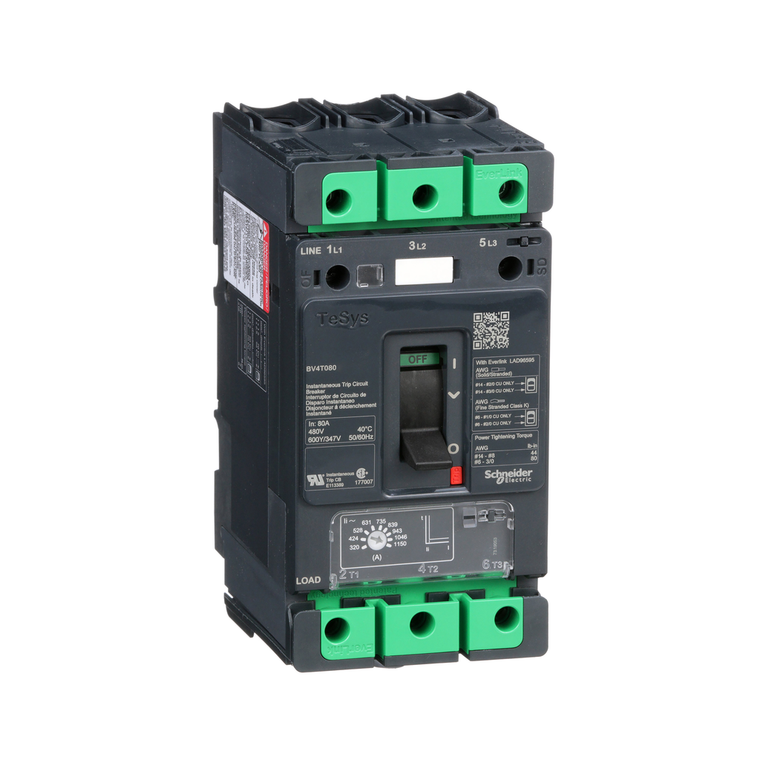

Schneider Electric BV4T080D Motor Circuit Protector 600Y/347V 80A
Schneider Electric
$460.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
The TeSys BV4 motor circuit protector allows for compact motor protection in conjunction with both the TeSys and Square D NEMA product families for motor control. These protectors have UL508 type D combination ratings in accordance to current NEC installation requirements The BV4 is a magnetic only protector. It is a UL489 Listed circuit protector rated up to 100kA short circuit protection rating per a listed combination motor controller rating. This 3 pole motor circuit protector with standard fault has a 80A rating. It also has an adjustable instantaneous trip rating of 320 to 1150 amperes. BV4 protectors have wiring terminals with the EverLink patented technology. These terminals reduce the risk of loose bare cables due to copper creeping. Vibration withstand is improved and periodic retightening is no longer needed. BV4 motor circuit protectors can be installed directly to a panel or on standard DIN rail. This circuit protector is 6.38 inches tall, 3.19 inches wide and 4.57 inches deep. This motor circuit protector is UL Listed and CSA certified.
- Mounting Mode:
- by clips || by screws
- Line Rated Current:
- 80 A 40 °C
- Tightening Torque:
- 5-5 N.m 10-10 mm² (AWG 8) || 9-9 N.m 16-16 mm² (AWG 6)
- Standards:
- UL 489 || CSA C22.2 No 5
- Net Weight:
- 1.5 kg
- Performance Level:
- standard
- Mounting Support:
- 75 mm symmetrical DIN rail || 35 mm symmetrical DIN rail || plate
- Number Of Slots:
- 1 alarm switch fault signalling contact, plug-in || 1 voltage release electrical remote tripping, plug-in || 1 auxiliary switch open/close contact, plug-in
- Height:
- 162 mm
- Ik Degree Of Protection:
- IK07 IEC 62262
- Utilisation Category:
- category A
- Color:
- Gray RAL 7016)
- Width:
- 81 mm
- Quantity Per Set:
- 1
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 116 mm
- Mercury Free:
- Yes
- Trip Unit Rating:
- 320-1150 A 40 °C
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || > 2000...5000 m with derating
- Control Type:
- toggle
- Device Application:
- motor
- Poles Description:
- 3P
- Mechanical Robustness:
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6 || vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6 || shocks 15 gn 11 ms IEC 60068-2-27
- Range:
- TeSys
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ue] Rated Operational Voltage:
- 600Y/347 V AC 50/60 Hz
- Rohs Exemption Information:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Trip Unit Technology:
- magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Short Name:
- BV4
- Ip Degree Of Protection:
- IP40 front face IEC 60529
- Ambient Air Temperature For Operation:
- -25-70 °C
- Mechanical Durability:
- 40000 cycles
- Product Name:
- TeSys BV4
- Product Certifications:
- UL || CSA
- Wire Stripping Length:
- 20 mm
- Electrical Durability:
- 14000 cycles AC-3 440 V In/2 || 7000 cycles AC-3 440 V In
- Connection Pitch:
- 27 mm
- Connections - Terminals:
- 2 EverLink BTR screw connectors 1.5-70 mm² AWG 14...AWG 2/0), solid copper || 2 EverLink BTR screw connectors 1.5-50 mm² AWG 6...AWG 1/0), flexible copper
- Local Signalling:
- for presence of auxiliary contacts flag (green)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- Motor Circuit Protector
- Pvc Free:
- Yes
- Ambient Air Temperature For Storage:
- -50-85 °C
- Protection Type:
- short-circuit
