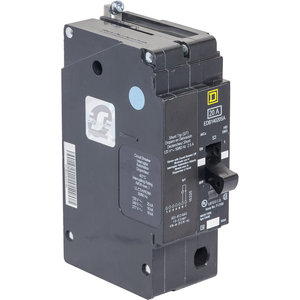

Schneider Electric EDB14020EPD Miniature Circuit Breaker 277V 20A

Schneider Electric EDB14020EPD Miniature Circuit Breaker 277V 20A

Schneider Electric
SKU:
EDB14020EPD
|
UPC:
785901425045
Availability:
Contact us to confirm availability and lead times.
$1,151.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
Additional Information
Holding Current:
270 A
Circularity Profile:
ENVEOLI2212008
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Earth-Leakage Protection Class:
class B
Sustainable Offer Status:
Green Premium product
Mounting Mode:
bolt-on
Trip Unit Rating:
875-875 A
Breaking Capacity:
18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
Circuit Breaker Application:
Switching Duty rated || HID rated || HACR rated
Range Of Product:
125 A Frame EDB-EGB-EJB
Warranty:
18 months
Number Of Spaces Required:
2
Line Rated Current:
20 A
Depth:
4.05 in
Local Signalling:
trip indicator
Product Certifications:
cULus || IEC
Number Of Poles:
1
Product Or Component Type:
miniature circuit-breaker
[Ue] Rated Operational Voltage:
277 V AC
Product Destination:
NF panelboard
Module Type:
E-Frame
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Height:
6.64 in
Number Of Spaces:
2
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Protection Type:
overload || short-circuit
Breaking Capacity Code:
D
Electrical Connection:
lugs aluminium
Rohs Exemption Information:
Yes
Earth-Leakage Sensitivity:
30 mA
Tightening Torque:
3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
Awg Gauge:
AWG 14...AWG 6 copper || AWG 12...AWG 4 aluminium
Device Short Name:
EDB
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP2212008
Trip Unit Technology:
thermal-magnetic
Width:
1.96 in
Net Weight:
2 lb(US)
Ambient Air Temperature For Operation:
40 °C
Brochure:
View
Catalog:
View
Datasheet:
View
