Schneider Electric EDB14025 Miniature Circuit Breaker 277V 25A
Schneider Electric
$150.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

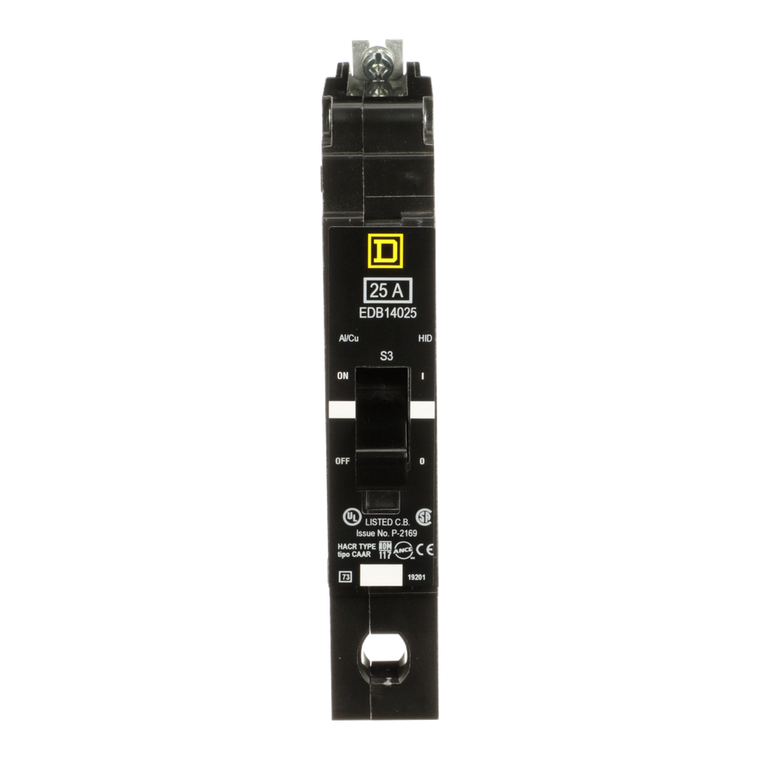

E Frame thermal magentic circuit breakers are for use in NF panelboards. These circuit breakers will protect against overload and short circuit conditions. Breakers have a trip indicator. This bolt on circuit breaker has a maximum voltage rating of 277 VAC. This 1 pole 25 A breaker is rated for HACR and HID applications. Breaker has a breaking capacity of 18 kA at 277 VAC. Circuit breaker has other breaking capacity ratings based on operting voltage. The breaking capacity code for this circuit breaker is D. Electrical connections are made using aluminum lugs. The lugs on this circuit breaker will accept 14 AWG to 6 AWG copper and 12 AWG to 6 AWG aluminum wire. One space is used by this circuit breaker. Circuit breaker is 5.66 inches tall, is 0.98 inches wide and 4.05 inches deep. E frame circuit breakers are UL Listed and CSA certified.
- Trip Unit Rating:
- 875-875 A
- Electrical Connection:
- lugs aluminium
- Module Type:
- E-Frame
- Line Rated Current:
- 25 A
- Number Of Spaces:
- 1
- Net Weight:
- 2 lb(US)
- Circuit Breaker Application:
- HID rated || HACR rated
- Product Or Component Type:
- miniature circuit-breaker
- Local Signalling:
- trip indicator
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Depth:
- 4.05 in
- Tightening Torque:
- 3.4-3.4 N.m 2.5-16 mm² (AWG 14...AWG 6)
- Holding Current:
- 270 A
- [Ue] Rated Operational Voltage:
- 277 V AC
- Trip Unit Technology:
- thermal-magnetic
- Mounting Mode:
- bolt-on
- Width:
- 0.98 in
- Number Of Poles:
- 1
- Breaking Capacity Code:
- D
- Ambient Air Temperature For Operation:
- 40 °C
- Number Of Spaces Required:
- 1
- Breaking Capacity:
- 18 kA 277 V AC || 18 kA 240 V AC || 25 kA 120 V AC || 18 kA 120/240 V AC
- Height:
- 5.66 in
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- cULus || IEC
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Destination:
- NF panelboard
- Awg Gauge:
- AWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
- Device Short Name:
- EDB
- Protection Type:
- overload || short-circuit
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
