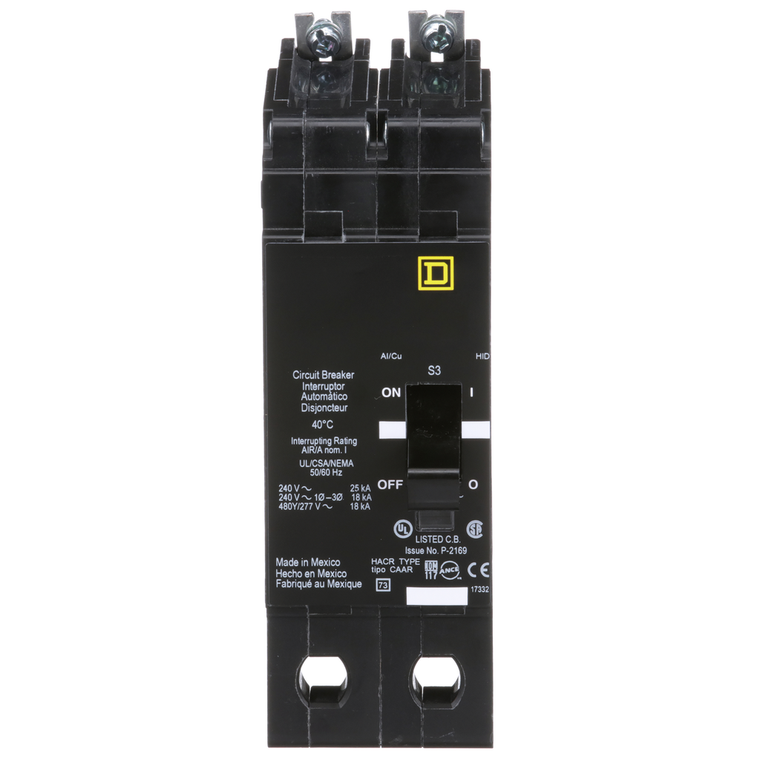

Schneider Electric EDB24035 Miniature Circuit Breaker 480Y/277V 35A

(No reviews yet) Write a Review
SKU:
EDB24035
UPC:
785901311027
Condition:
New
Rohs Exemption Information:
Yes
Number Of Spaces Required:
2
Product Certifications:
cULus
Device Short Name:
EDB
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Breaking Capacity:
18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
Product Destination:
NF panelboard
Protection Type:
short-circuit || overload
Holding Current:
630 A
Number Of Poles:
2
Line Rated Current:
35 A
Local Signalling:
trip indicator
Depth:
4.05 in
Electrical Connection:
lugs aluminium
Number Of Spaces:
2
Height:
5.66 in
Breaking Capacity Code:
D
Ambient Air Temperature For Operation:
40 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Module Type:
E-Frame
Range Of Product:
125 A Frame EDB-EGB-EJB
Mounting Mode:
bolt-on
Circuit Breaker Application:
HID rated || HACR rated
Trip Unit Technology:
thermal-magnetic
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Width:
1.96 in
Warranty:
18 months
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Product Or Component Type:
miniature circuit-breaker
Mercury Free:
Yes
Net Weight:
3 lb(US)
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
[Ue] Rated Operational Voltage:
480Y/277 V AC
Trip Unit Rating:
1800-1800 A
  • Schneider Electric EDB24035 Miniature Circuit Breaker 480Y/277V 35A
  • Schneider Electric EDB24035 Miniature Circuit Breaker 480Y/277V 35A
  • Schneider Electric EDB24035 Miniature Circuit Breaker 480Y/277V 35A
$536.00

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 35A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
