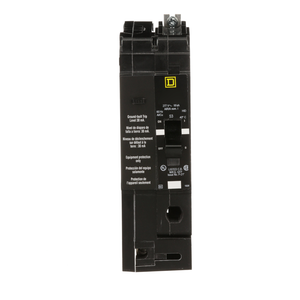

Schneider Electric EGB14050EPD Miniature Circuit Breaker 277V 50A

Schneider Electric EGB14050EPD Miniature Circuit Breaker 277V 50A

Schneider Electric
SKU:
EGB14050EPD
|
UPC:
7.85901E+11
$1,256.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 50A, 1 pole, and has a operating voltage of 277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Additional Information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Operation:
40 °C
Trip Unit Technology:
thermal-magnetic
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Module Type:
E-Frame
Warranty:
18 months
Number Of Poles:
1
Electrical Connection:
lugs aluminium
Holding Current:
630 A
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Number Of Spaces Required:
2
Protection Type:
overload || short-circuit
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Earth-Leakage Sensitivity:
30 mA
Depth:
4.05 in
Line Rated Current:
50 A
Circuit Breaker Application:
HACR rated || HID rated
Width:
1.96 in
Awg Gauge:
AWG 14...AWG 6 copper || AWG 12...AWG 4 aluminium
Height:
6.64 in
Rohs Exemption Information:
Yes
Breaking Capacity Code:
G
Product Destination:
NF panelboard
Trip Unit Rating:
1800-1800 A
Earth-Leakage Protection Class:
class B
Product Or Component Type:
miniature circuit-breaker
[Ue] Rated Operational Voltage:
277 V AC
Mercury Free:
Yes
Breaking Capacity:
35 kA 277 V AC || 35 kA 240 V AC || 65 kA 120 V AC || 35 kA 120/240 V AC
Local Signalling:
trip indicator
Range Of Product:
125 A Frame EDB-EGB-EJB
Number Of Spaces:
2
Product Certifications:
cULus
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
bolt-on
Net Weight:
2 lb(US)
Device Short Name:
EGB
