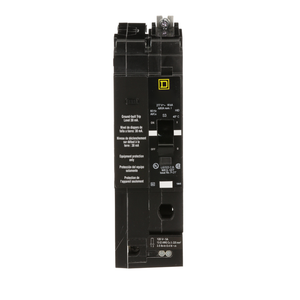

Schneider Electric EJB14040 Miniature Circuit Breaker 277V 40A
Schneider Electric
$408.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 40A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
- Depth:
- 4.05 in
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Holding Current:
- 630 A
- Line Rated Current:
- 40 A
- Net Weight:
- 2 lb(US)
- Module Type:
- E-Frame
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Warranty:
- 18 months
- Electrical Connection:
- lugs aluminium
- Number Of Spaces:
- 1
- Width:
- 0.98 in
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protection Type:
- short-circuit || overload
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Ambient Air Temperature For Operation:
- 40 °C
- Circuit Breaker Application:
- HID rated || HACR rated
- Breaking Capacity Code:
- J
- Breaking Capacity:
- 65 kA 240 V AC || 65 kA 277 V AC || 100 kA 120 V AC || 65 kA 120/240 V AC
- Local Signalling:
- trip indicator
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- [Ue] Rated Operational Voltage:
- 277 V AC
- Product Destination:
- NF panelboard
- Mounting Mode:
- bolt-on
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Spaces Required:
- 1
- Trip Unit Technology:
- thermal-magnetic
- Product Or Component Type:
- miniature circuit-breaker
- Rohs Exemption Information:
- Yes
- Product Certifications:
- cULus
- Trip Unit Rating:
- 1800-1800 A
- Device Short Name:
- EJB
- Height:
- 5.66 in
- Number Of Poles:
- 1
