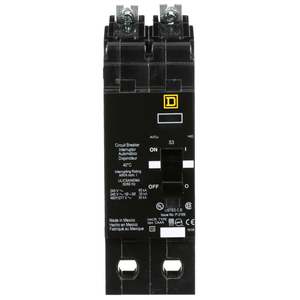

Schneider Electric EJB24045 Miniature Circuit Breaker 480Y/277V 45A

Schneider Electric EJB24045 Miniature Circuit Breaker 480Y/277V 45A

Schneider Electric
SKU:
EJB24045
|
UPC:
7.85901E+11
$1,241.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 45A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Additional Information
Breaking Capacity:
65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC
Tightening Torque:
3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
miniature circuit-breaker
Line Rated Current:
45 A
Range Of Product:
125 A Frame EDB-EGB-EJB
Ambient Air Temperature For Operation:
40 °C
Module Type:
E-Frame
Device Short Name:
EJB
Protection Type:
short-circuit || overload
Rohs Exemption Information:
Yes
Number Of Spaces:
2
Awg Gauge:
AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
Net Weight:
3 lb(US)
Product Certifications:
cULus
Number Of Spaces Required:
2
Circuit Breaker Application:
HID rated || HACR rated
Trip Unit Technology:
thermal-magnetic
Product Destination:
NF panelboard
Mounting Mode:
bolt-on
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
480Y/277 V AC
Warranty:
18 months
Holding Current:
630 A
Height:
5.66 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
4.05 in
Trip Unit Rating:
1800-1800 A
Breaking Capacity Code:
J
Electrical Connection:
lugs aluminium
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
1.96 in
Number Of Poles:
2
Local Signalling:
trip indicator
