Schneider Electric EJB34090 Miniature Circuit Breaker 480Y/277V 90A
Schneider Electric
$2,562.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

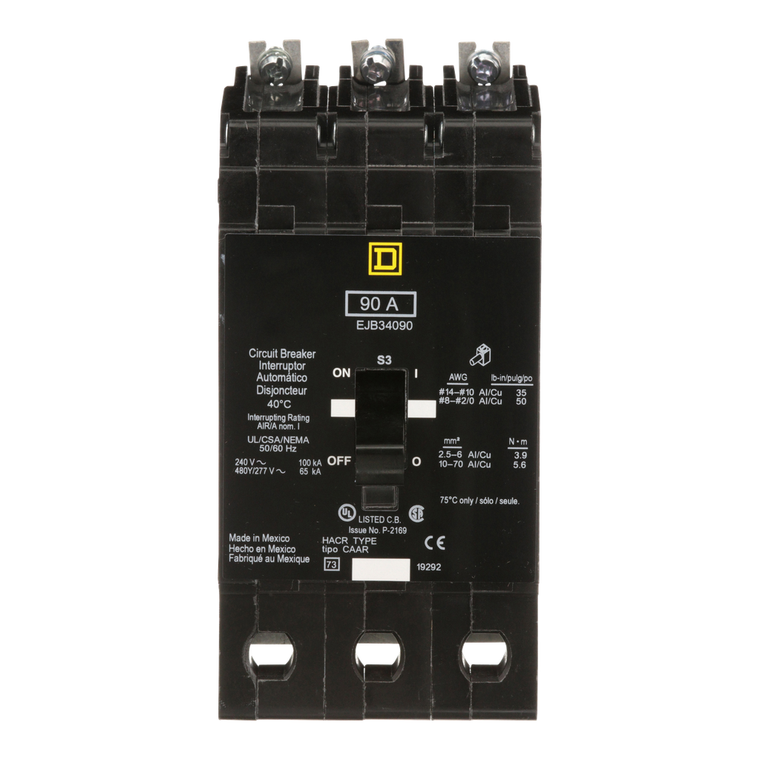

Schneider Electric EJB34090 Miniature Circuit Breaker 480Y/277V 90A
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 90A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Holding Current:
- 1000 A
- Net Weight:
- 4 lb(US)
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- 40 °C
- Trip Unit Technology:
- thermal-magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- miniature circuit-breaker
- Breaking Capacity Code:
- J
- Height:
- 5.66 in
- Depth:
- 4.05 in
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Product Certifications:
- cULus
- Product Destination:
- NF panelboard
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 90 A
- Mounting Mode:
- bolt-on
- Number Of Poles:
- 3
- Number Of Spaces Required:
- 3
- Electrical Connection:
- lugs aluminium
- Width:
- 2.94 in
- Protection Type:
- short-circuit || overload
- [Ue] Rated Operational Voltage:
- 480Y/277 V AC
- Warranty:
- 18 months
- Trip Unit Rating:
- 2300-2300 A
- Device Short Name:
- EJB
- Module Type:
- E-Frame
- Breaking Capacity:
- 65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC
- Local Signalling:
- trip indicator
- Number Of Spaces:
- 3
- Mercury Free:
- Yes
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Circuit Breaker Application:
- HACR rated
