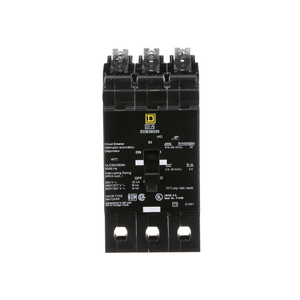

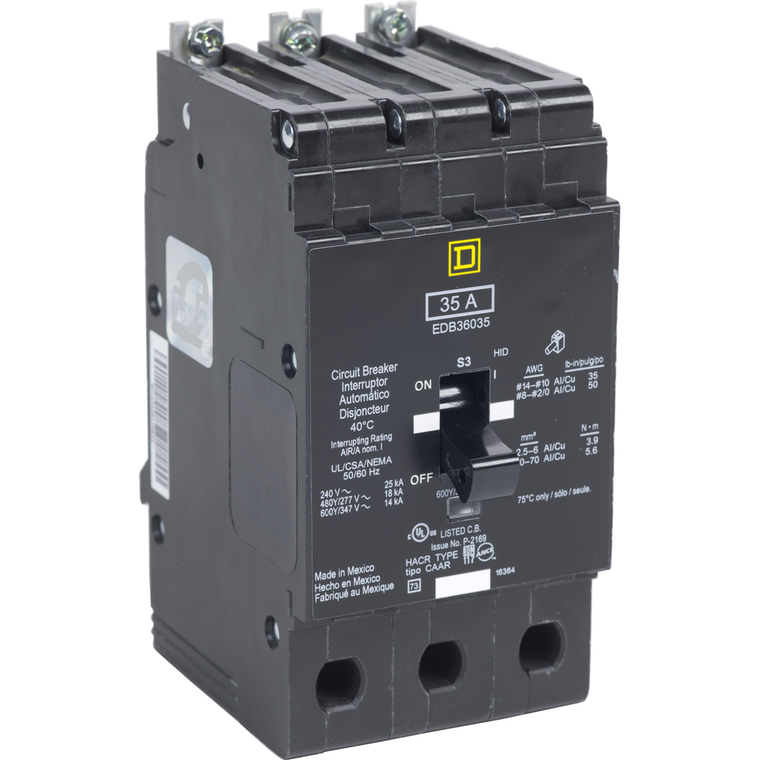

Schneider Electric EJB36080 Miniature Circuit Breaker 600V 80A
Schneider Electric
$2,562.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 80A, 3 pole, and has an operating voltage of 600Y/347 VAC. It also provides a 100 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
- Warranty:
- 18 months
- Trip Unit Rating:
- 2300-2300 A
- Trip Unit Technology:
- thermal-magnetic
- Tightening Torque:
- 3.9-3.9 N.m 2.5-6 mm² (AWG 14...AWG 10) || 5.6-5.6 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Number Of Poles:
- 3
- Net Weight:
- 4 lb(US)
- Electrical Connection:
- lugs aluminium
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Module Type:
- E-Frame
- Awg Gauge:
- AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper
- Holding Current:
- 1000 A
- Line Rated Current:
- 80 A
- Breaking Capacity Code:
- J
- Local Signalling:
- trip indicator
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Breaking Capacity:
- 25 kA 600Y/347 V AC
- Mercury Free:
- Yes
- Protection Type:
- short-circuit || overload
- Product Destination:
- NF panelboard
- Range Of Product:
- 125 A Frame EDB-EGB-EJB
- Width:
- 2.94 in
- Ambient Air Temperature For Operation:
- 40 °C
- Height:
- 5.66 in
- Mounting Mode:
- bolt-on
- Product Or Component Type:
- circuit-breaker
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 4.05 in
- Circuit Breaker Application:
- HACR rated
- Device Short Name:
- EJB
- [Ue] Rated Operational Voltage:
- 600Y/347 V AC
- Number Of Spaces:
- 3
- Number Of Spaces Required:
- 3
- Product Certifications:
- cULus
