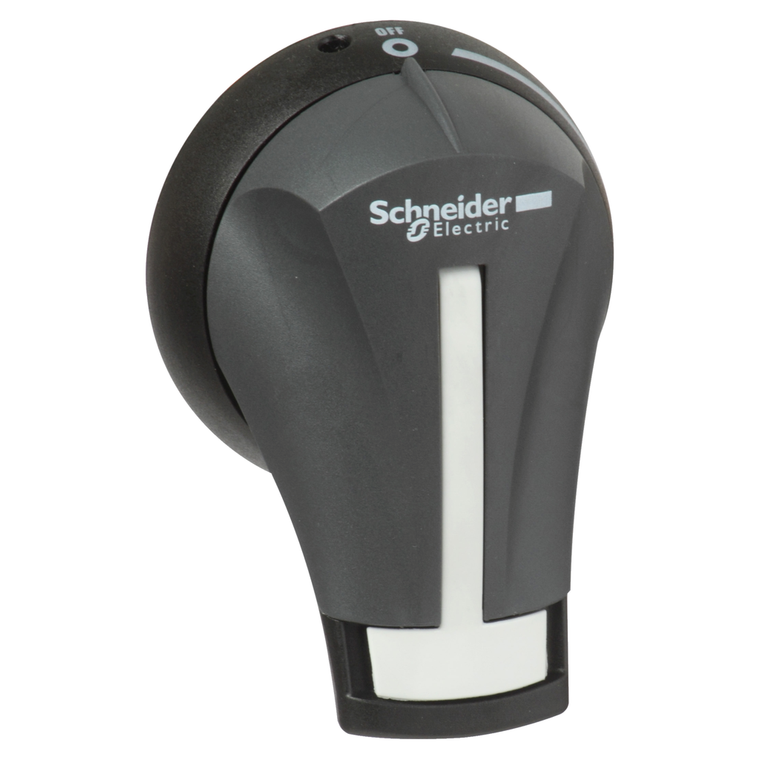

Schneider Electric GS2AH110 Ext Front Handle 30-60A 3R,12 Black

Schneider Electric GS2AH110 Ext Front Handle 30-60A 3R,12 Black

Schneider Electric
SKU:
GS2AH110
|
UPC:
3389119411813
Availability:
Contact us to confirm availability and lead times.
$62.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Additional Information
Handle Front Plate Colour:
grey
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Device Short Name:
GS2AH
Marking:
O-I
China Rohs Regulation:
X
Nema Degree Of Protection:
NEMA 3R/12
Reach Free Of Svhc:
Yes
Eu Rohs Directive:
Compliant
Mercury Free:
Yes
Net Weight:
0.2 kg
Circularity Profile:
ENVEOLI2003007EN
Environmental Disclosure:
ENVPEP2003007EN
Rohs Exemption Information:
Yes
Toxic Heavy Metal Free:
Yes
Line Rated Current:
30 A
Range:
TeSys
Handle Colour:
black
Type Of Operating Handle:
external frontal
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
rotary handle
Range Of Product:
TeSys
Standards:
UL || CSA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Range Compatibility:
TeSys TeSys GS GS1D
Rotary Handle Padlocking:
with
