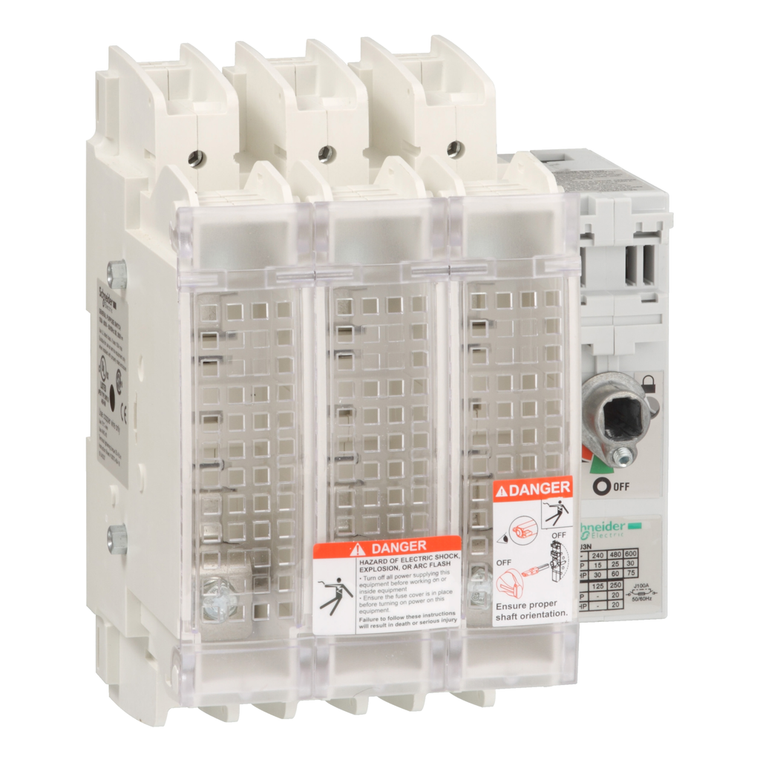

Schneider Electric GS2JU3N Disconnect Switch Fusible 600V 100A 3P

Schneider Electric GS2JU3N Disconnect Switch Fusible 600V 100A 3P

Schneider Electric
SKU:
GS2JU3N
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$536.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
Additional Information
Depth:
122.2 mm
Rohs Exemption Information:
Yes
Device Short Name:
GS2JU
Ip Degree Of Protection:
IP20 IEC 60529 with terminal cover)
Mounting Support:
plate
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Circularity Profile:
ENVEOLI2003007EN
Warranty:
18 months
[Ith] Conventional Free Air Thermal Current:
100 A (at 40 °C)
Type Of Operating Handle:
external frontal
Fuse Size:
J
Product Or Component Type:
switch-disconnector-fuse
Fire Resistance:
960 °C body
Poles Description:
3P
[Ui] Rated Insulation Voltage:
750 V
Width:
149.3 mm
Network Type:
AC || DC
Product Name:
TeSys GS
Network Frequency:
50/60 Hz
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-40-80 °C
Eu Rohs Directive:
Compliant
Short-Circuit Withstand:
200 kA
Connections - Terminals:
lugs-ring terminals || power circuit bars 34-42 mm²
Electrical Durability:
6000 cycles
Rated Operational Power In W:
51 kW 400 V || 63 kW 500 V || 90 kW 690 V
Fuse Type:
UL
Range:
TeSys
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Mechanical Durability:
10000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
[Ie] Rated Operational Current:
100 A
Reach Free Of Svhc:
Yes
Protected Poles Description:
3t
Height:
186 mm
Sustainable Offer Status:
Green Premium product
Device Application:
protection
Standards:
CSA C22.2 No 4 || UL98
Ambient Air Temperature For Operation:
-20-70 °C
Net Weight:
2.761 kg
Contacts Type And Composition:
3 NO
Tightening Torque:
power circuit 4-4 N.m
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP2003007EN
Datasheet:
View
