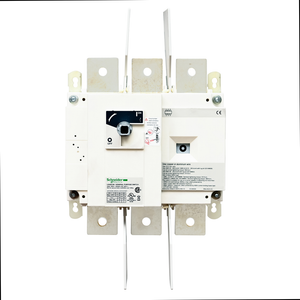

Schneider Electric GS2QU3N Disconnect Switch Fusible 600V 400A 3P
TeSys GS fuse switch-disconnector, 3 poles (3P), 400A/800V, to be used with class J fuse links up to 400A, for motor applications up to 220kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP53 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
- Network Frequency:
- 50/60 Hz
- Contacts Type And Composition:
- 3 NO
- Mechanical Durability:
- 10000 cycles
- Fuse Size:
- J
- Toxic Heavy Metal Free:
- Yes
- Range:
- TeSys
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- Ambient Air Temperature For Storage:
- -40-80 °C
- Environmental Disclosure:
- ENVPEP2003007EN
- Protected Poles Description:
- 3t
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Width:
- 259 mm
- Connections - Terminals:
- power circuit lugs-ring terminals 13.3-304 mm²
- Mercury Free:
- Yes
- Rated Operational Power In W:
- 220 kW 690 V || 220 kW 500 V || 220 kW 400 V
- Device Application:
- protection
- [Ui] Rated Insulation Voltage:
- 800 V
- Circularity Profile:
- ENVEOLI2003007EN
- Network Type:
- AC || DC
- Fuse Type:
- UL
- Reach Free Of Svhc:
- Yes
- Height:
- 240 mm
- Tightening Torque:
- power circuit 56.5-56.5 N.m
- Product Name:
- TeSys GS
- Standards:
- CSA C22.2 No 4 || UL98
- Device Short Name:
- GS2QU
- Ambient Air Temperature For Operation:
- -20-70 °C
- Depth:
- 180 mm
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- switch-disconnector-fuse
- [Ith] Conventional Free Air Thermal Current:
- 400 A (at 40 °C)
- [Ie] Rated Operational Current:
- 400 A
- Ip Degree Of Protection:
- IP20 IEC 60529 with terminal cover)
- Type Of Operating Handle:
- external frontal
- Poles Description:
- 3P
- Short-Circuit Withstand:
- 200 kA
- Electrical Durability:
- 6000 cycles
- Eu Rohs Directive:
- Compliant
- China Rohs Regulation:
- X
- Mounting Support:
- plate
