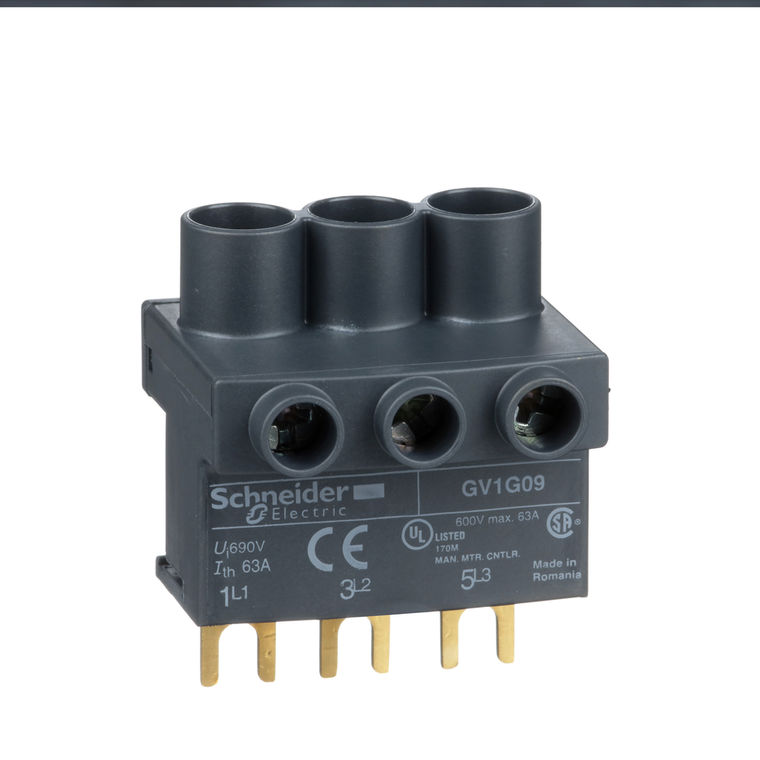

Schneider Electric GV1G09 Terminal Block Gv2 G Busbar

(No reviews yet) Write a Review

Write a Review

Schneider Electric GV1G09 Terminal Block Gv2 G Busbar

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GV1G09

UPC:

3389110212570

MPN:

Condition:

New

Tightening Torque:

1.7-1.7 N.m screw clamp terminals || 2.2-2.2 N.m connector

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Compliant

Poles Description:

3P

[Ui] Rated Insulation Voltage:

690 V IEC 60947-1

Mounting Location:

top

Product Certifications:

CE || UKCA

Range:

Linergy

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Reach Free Of Svhc:

Yes

Connections - Terminals:

screw clamp terminals 1 solid AWG 4 || screw clamp terminals 1 1.5-16 mm² flexible with cable end || screw clamp terminals 1 1.5-16 mm² flexible without cable end || screw clamp terminals 1 1.5-25 mm² solid || screw clamp terminals 2 1.5-4 mm² flexib

Accessory / Separate Part Category:

connection accessory

[Ie] Rated Operational Current:

63 A

Range Compatibility:

TeSys GV2 || TeSys Deca || TeSys U || TeSys LS1

Product Or Component Type:

terminal block

Device Short Name:

GV1G

Toxic Heavy Metal Free:

Yes

Mercury Free:

Yes

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Product Name:

FT

Net Weight:

0.04 kg

Warranty:

18 months
