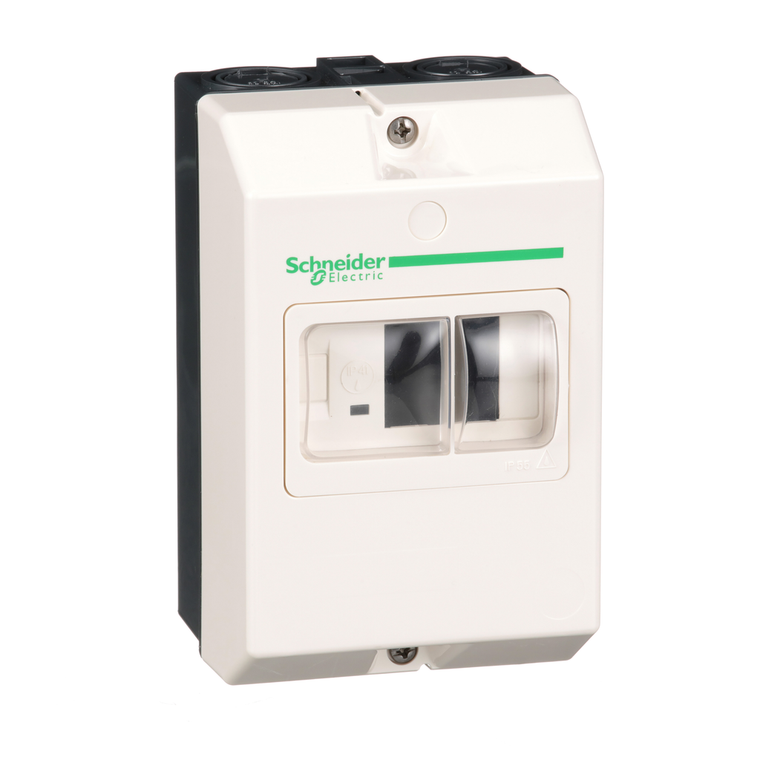

Schneider Electric GV2MC02 Surface Mount.Encl.Ip55
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
- Range:
- TeSys
- Product Certifications:
- UKCA
- Ip Degree Of Protection:
- IP55
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Height:
- 147 mm
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP111273EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 93 mm
- Net Weight:
- 0.3 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Auxiliary Mounting Location:
- left || right
- Product Compatibility:
- GV2ME
- Device Short Name:
- GV2MC
- Enclosure/Cubicle Description:
- surface mounting
- Product Or Component Type:
- enclosure
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant
- Environmental Characteristic:
- standard environment
- Accessory / Separate Part Category:
- mounting accessory
- Depth:
- 84 mm
- Toxic Heavy Metal Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
