Schneider Electric GV2MP02 Flush Mount.Encl.Ip55
Schneider Electric
$54.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

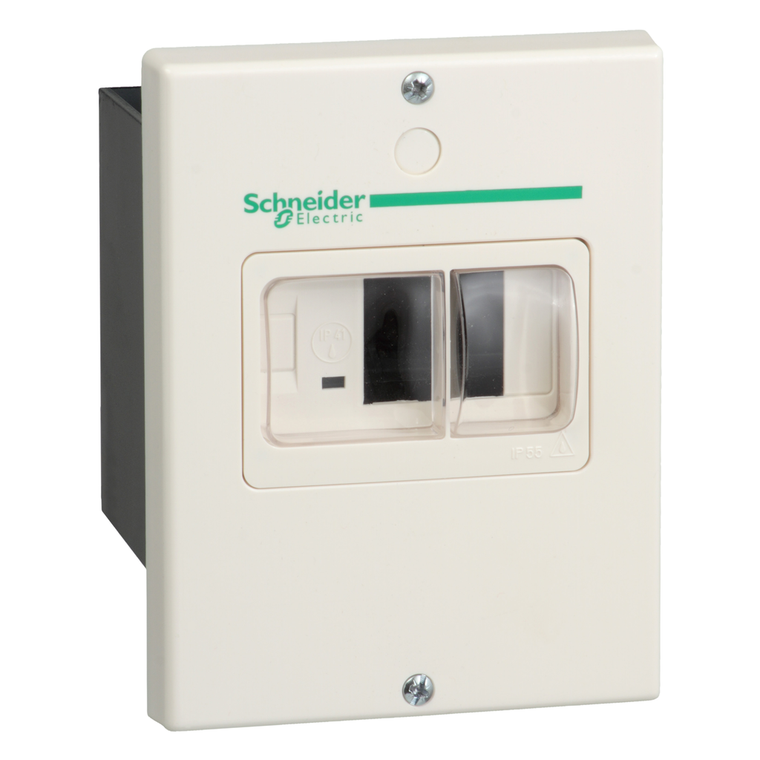

Schneider Electric GV2MP02 Flush Mount.Encl.Ip55
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
- Product Compatibility:
- GV2ME
- Ip Degree Of Protection:
- IP55 front face
- Environmental Characteristic:
- standard environment
- Depth:
- 83 mm
- Rohs Exemption Information:
- Yes
- Accessory / Separate Part Category:
- mounting accessory
- Height:
- 140 mm
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- N/A
- Warranty:
- 18 months
- Width:
- 106.5 mm
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Enclosure/Cubicle Description:
- flush mounting
- Product Certifications:
- UKCA || CE
- Environmental Disclosure:
- ENVPEP111273EN
- China Rohs Regulation:
- X
- Device Short Name:
- GV2MP
- Product Or Component Type:
- enclosure
- Net Weight:
- 0.13 kg
- Auxiliary Mounting Location:
- right || left
- Range:
- TeSys
- Datasheet:
- View
