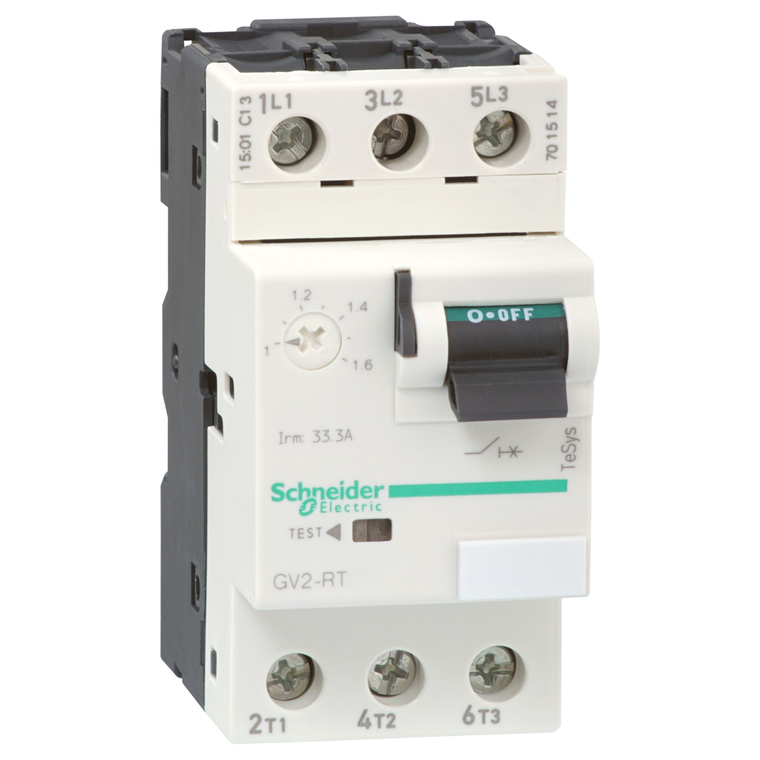

Schneider Electric GV2RT03 Gv2 Motor Cb High Inrush 0.25-4A Toggle

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric GV2RT03 Gv2 Motor Cb High Inrush 0.25-4A Toggle

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GV2RT03

UPC:

3389110520590

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Rated Duty:

continuous IEC 60947-4-1

Thermal Protection Adjustment Range:

0.25-0.4 A IEC 60947-4-1

Ik Degree Of Protection:

IK04

Network Frequency:

50/60 Hz IEC 60947-4-1

Tightening Torque:

1.7 N.m screw clamp terminal

Breaking Capacity:

100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Fixing Mode:

35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Ip Degree Of Protection:

IP20 IEC 60529

Mechanical Robustness:

shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-2

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Or Component Type:

motor circuit breaker

Height:

89 mm

Device Application:

motor protection || transformer

Poles Description:

3P

Range:

TeSys Deca

Width:

45 mm

Depth:

78.5 mm

Climatic Withstand:

IACS E10

Eu Rohs Directive:

Compliant with Exemptions

Magnetic Tripping Current:

8-8 A

Device Short Name:

GV2RT

Mercury Free:

Yes

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-2

Fire Resistance:

960 °C IEC 60695-2-11

Rohs Exemption Information:

Yes

Motor Power Kw:

0.06-0.06 kW 220/230 V AC 50/60 Hz motor protection high peak current || 0.09-0.09 kW 400/415 V AC 50/60 Hz motor protection high peak current || 0.09-0.09 kW 440 V AC 50/60 Hz motor protection high peak current || 0.12-0.12 kW 440 V AC 50/60 Hz moto

Ambient Air Temperature For Operation:

-20-60 °C

Control Type:

toggle

Line Rated Current:

0.4 A

Utilisation Category:

category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1

Sustainable Offer Status:

Green Premium product

Product Name:

TeSys GV2 || TeSys Deca

Warranty:

18 months

Electrical Durability:

100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ith] Conventional Free Air Thermal Current:

0.4 A IEC 60947-4-1

Network Type:

AC

Ambient Air Temperature For Storage:

-40-80 °C

Trip Unit Technology:

thermal-magnetic

Mechanical Durability:

100000 cycles

Suitability For Isolation:

yes IEC 60947-1 § 7-1-6

Operating Altitude:

6561.68 ft (2000 m)

Standards:

EN/IEC 60947-2 || EN/IEC 60947-4-1

Environmental Disclosure:

ENVPEP121004

Circularity Profile:

ENVEOLI121004

Product Certifications:

CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || UKCA

[Ui] Rated Insulation Voltage:

690 V AC 50/60 Hz IEC 60947-2

Power Dissipation Per Pole:

2.5 W

Datasheet:

View
