Schneider Electric GV3APN02 Tesys Kit Ip54 Redhandle-Shaft Front
Schneider Electric
$136.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

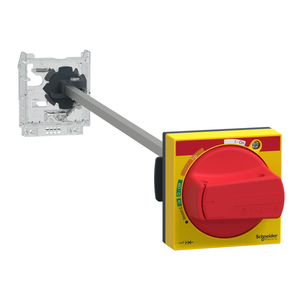

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
- Product Or Component Type:
- rotary handle kit
- Range:
- TeSys || TeSys Deca
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Locking Options Description:
- 1 to 3 padlocks
- Eu Rohs Directive:
- Compliant with Exemptions
- Environmental Disclosure:
- ENVPEP060901
- Product Compatibility:
- GV3L || GV3P
- Accessory / Separate Part Category:
- control accessory
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- ENVEOLI060901
- Back/Door Distance:
- 189-300 mm
- Device Short Name:
- GV3AP
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ip Degree Of Protection:
- IP54
- Handle Front Plate Colour:
- yellow
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rotary Handle Mounting Style:
- extended
- Handle Colour:
- red
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.3 kg
- Rotary Handle Padlocking:
- padlock in OFF position
- Datasheet:
- View
