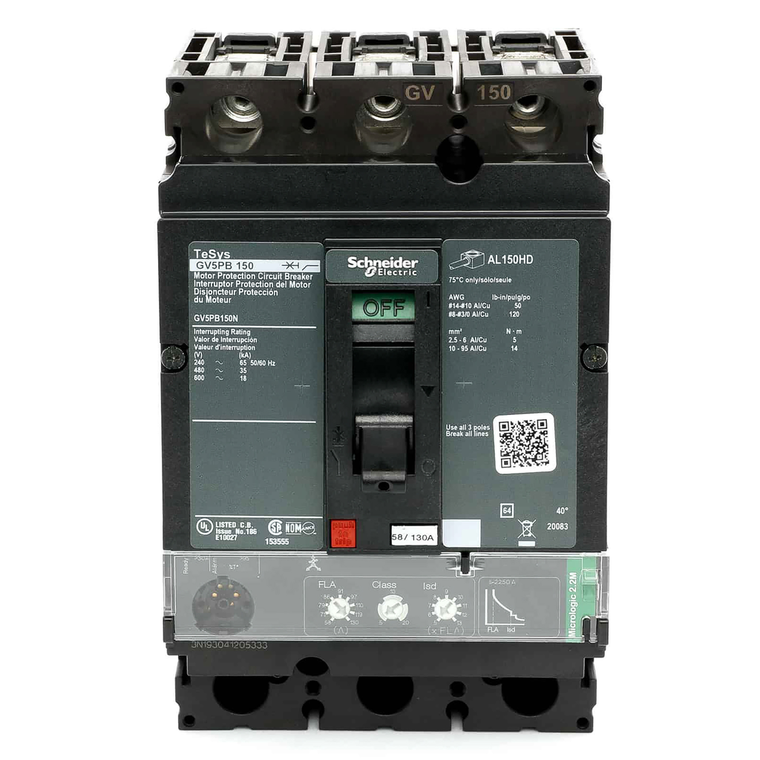

Schneider Electric GV5PB150N Motor Circuit Protector 600V 150A
Schneider Electric
$881.89
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
TeSys GV5 motor protective circuit breakers provide an efficient motor control and protection solution up to 520 amps. This 3 pole motor protective circuit breaker is rated at 150A. The thermal protection adjustable dials have settings of 58A to 130A, a selectable tripping class of 5, 10 or 20, and magnetic protection at 15 In. It has SCCR breaking capacity 18kA at 600Y/347V. This motor protective circuit breaker is 6.40 inches tall, 4.12 inches wide and 4.36 inches deep. This UL489 motor protective circuit breaker is has UL Listed, CSA, IEC, CCC, EAC, and Marine certifications.
- Pvc Free:
- Yes
- Ambient Air Temperature For Operation:
- 40-40 °C
- Line Rated Current:
- 150 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mercury Free:
- Yes
- Depth:
- 4.36 in
- Width:
- 4.12 in
- Trip Unit Technology:
- electronicMicroLogic 2.2 M,
- Tightening Torque:
- 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
- Thermal Protection Adjustment Range:
- 58-130 A
- Breaking Capacity Code:
- N
- Phase Failure Sensitivity:
- yes
- Product Or Component Type:
- motor protection circuit breaker
- Poles Description:
- 3P
- Circularity Profile:
- ENVEOLI2206027EN
- Mounting Mode:
- unit mount
- Environmental Disclosure:
- ENVPEP2206027EN
- Height:
- 6.4 in
- Eu Rohs Directive:
- Compliant with Exemptions
- Breaking Capacity:
- 65 kA 240 V AC || 35 kA 480 V AC || 18 kA 600 V AC
- [Ue] Rated Operational Voltage:
- 600 V AC
- Electrical Connection:
- lugs, load || lugs, line
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Product Name:
- TeSys GV5
- Product Certifications:
- CSA || ANSI || UL Listed || NOM
