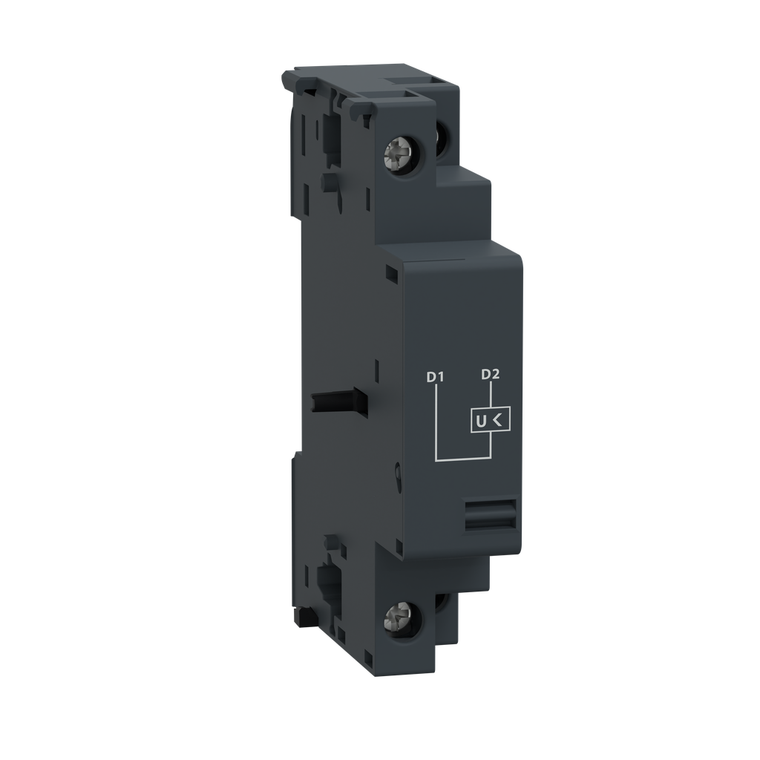

Schneider Electric GVAU115 Tesys Undervolt Trip 115V Rhs Mt

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric GVAU115 Tesys Undervolt Trip 115V Rhs Mt

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

GVAU115

UPC:

3389110345933

MPN:

Condition:

New

Depth:

66 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Hold-In Power Consumption In W:

1.1-1.1 W

[Ui] Rated Insulation Voltage:

690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

Range:

TeSys || TeSys Deca

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height:

89 mm

Tightening Torque:

< 1.4 N.m screw clamp terminals

Rohs Exemption Information:

Yes

Operating Time:

10...15 ms IEC 60947-1

Hold-In Power Consumption In Va:

3.5-3.5 VA AC

Toxic Heavy Metal Free:

Yes

Color:

dark grey

Device Short Name:

GVAU

Inrush Power In W:

8 W

Reach Free Of Svhc:

Yes

Control Circuit Voltage Limits:

0.85...1.1 Un

[Uc] Control Circuit Voltage:

127 V AC 60 Hz || 110...115 V AC 50 Hz

Warranty:

18 months

Connections - Terminals:

screw clamp terminals 1 1-2.5 mm²solid || screw clamp terminals 2 1-2.5 mm²solid || screw clamp terminals 1 0.75-2.5 mm²flexible without cable end || screw clamp terminals 2 0.75-2.5 mm²flexible without cable end || screw clamp terminals 1 0.75-1

Product Or Component Type:

undervoltage release

On-Load Factor:

1

Net Weight:

0.105 kg

Mechanical Durability:

10000 cycles with GV3P and GV3L || 30000 cycles with GV2ME and GV2P

Eu Rohs Directive:

Compliant

Width:

18 mm

Quantity Per Set:

set of 10

Inrush Power In Va:

12-12 VA AC

Range Compatibility:

TeSys GV2ME || TeSys GV2LE || TeSys GV2L || TeSys GV2P || TeSys GV3L || TeSys GV3P || TeSys Deca

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Threshold Tripping Voltage:

0.7...0.35 Un

Datasheet:

View
